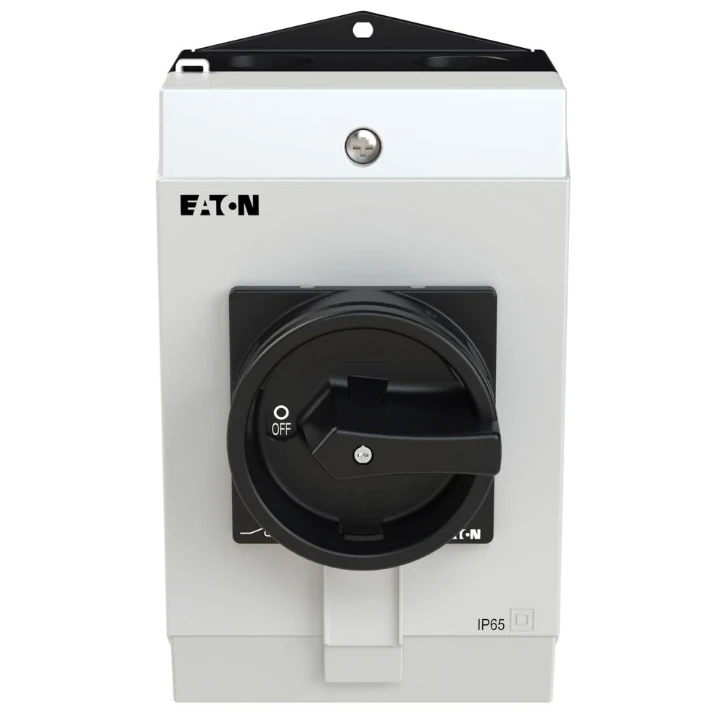

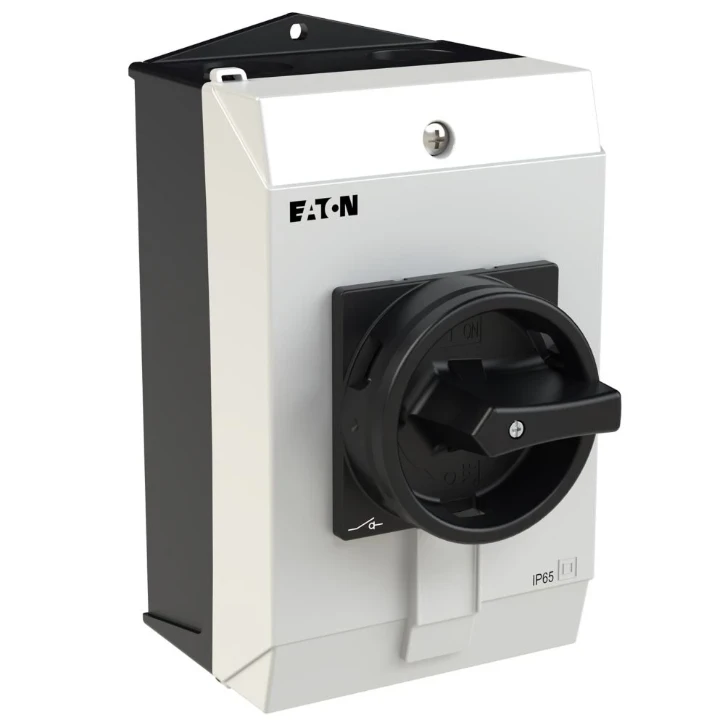

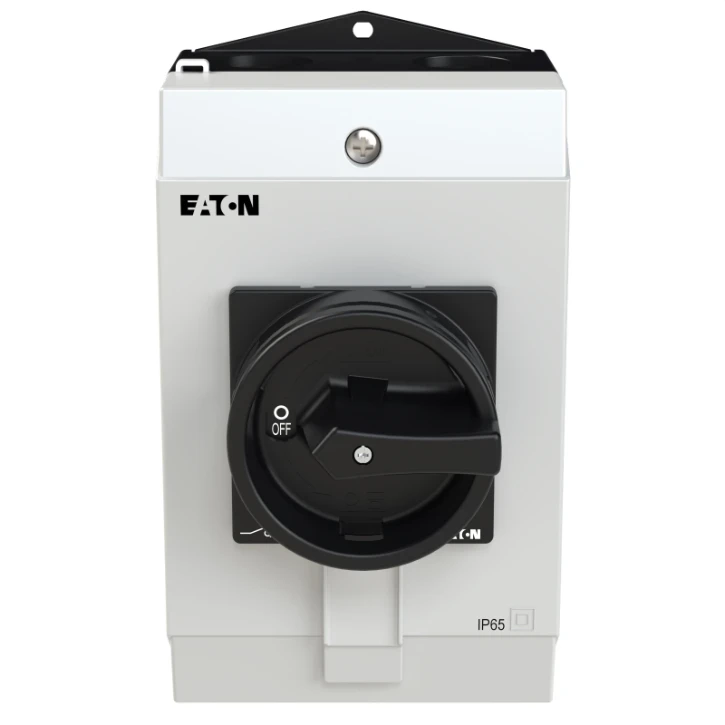

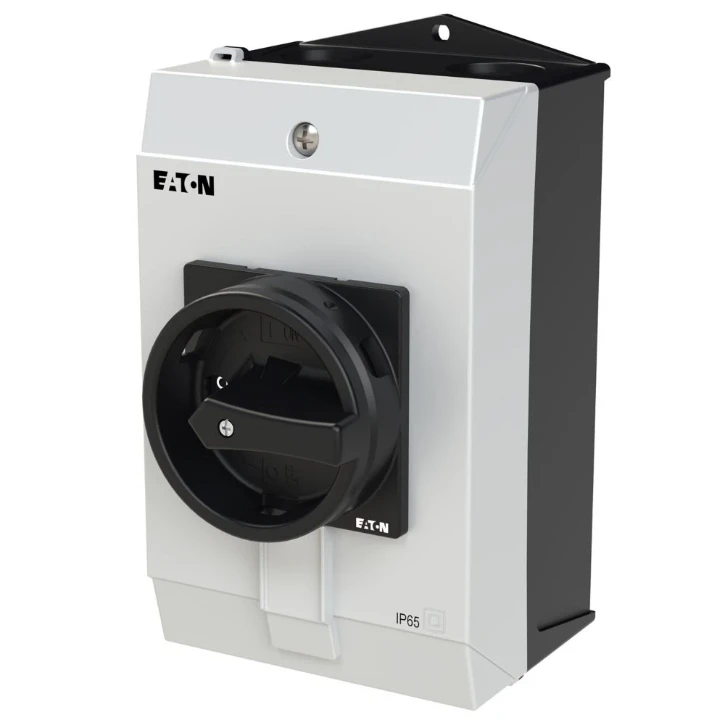

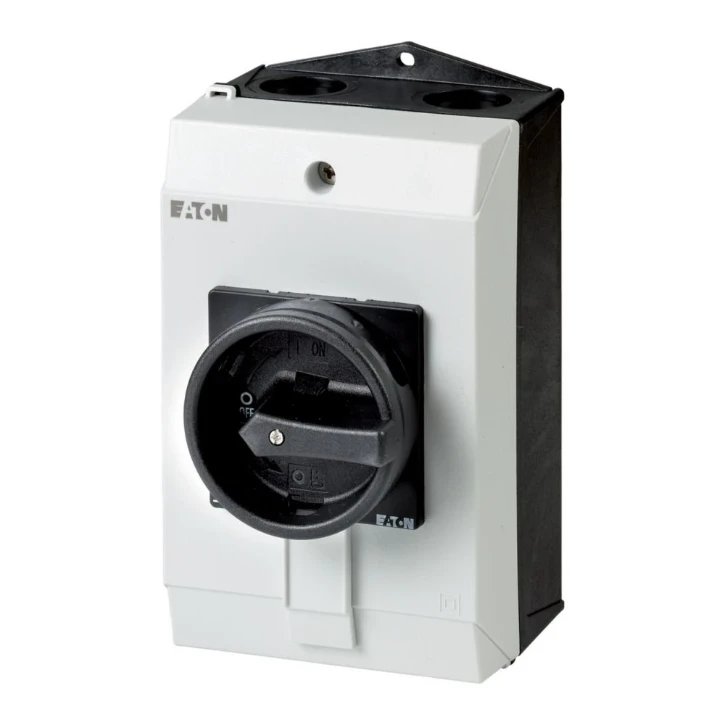

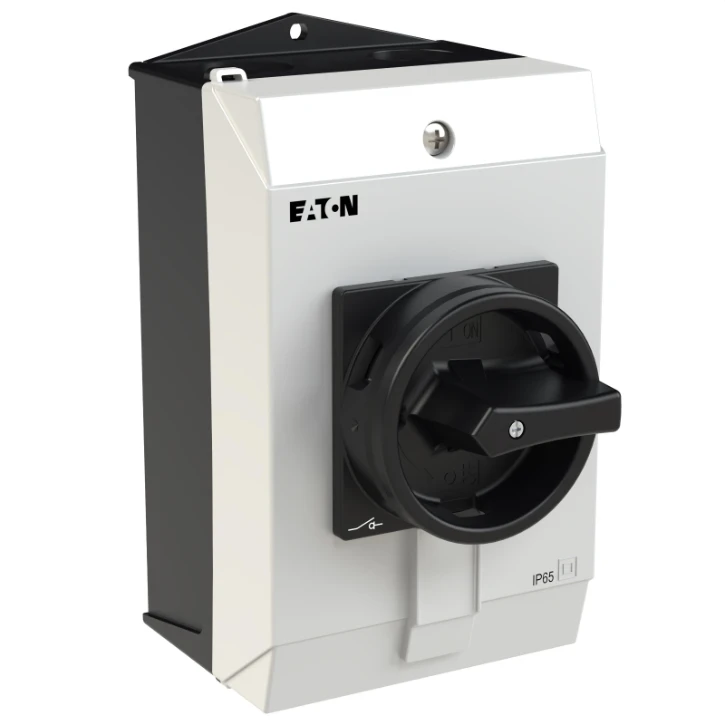

Hoofdschakelaar, 3-polig + N, 32 A, HOLD-functie, afsluitbaar in 0-sta
- 0039-7723
- |
- 207317
1
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Hoofdschakelaar, 3-polig + N, 32 A, HOLD-functie, afsluitbaar in 0-sta
Hoofdschakelaar, 3-polig + N, 32 A, HOLD-functie, afsluitbaar in 0-sta
Ordercode YESSS
0039-7723
Product code
207317
EAN code
04015082073176
Product group
Switch disconnector (AC)
Brand
Eaton
Serie
P lastschakelaar
Type
P1-32/I2/SVB-SW/N
Product description
Hoofdschakelaar, P1, Nominale ononderbroken stroom (Iu): 32 A, Functies: Vergrendelbaar, STOP-functie, Uitgerust met: Zwarte draaihendel en borgring, Montagewijze: Opbouw, Aantal polen: Vierpolig, Vergrendelingsvoorziening: Vergrendelbaar in de stand 0 (Uit), Beschermingsgraad: NEMA 12
Product specifications
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Version as reversing switch
No
Number of switches
1
Max. rated operation voltage Ue AC
690 V
Rated operating voltage
690 - 690 V
Rated permanent current Iu
32 A
Rated permanent current at AC-23, 400 V
32 A
Rated permanent current at AC-21, 400 V
32 A
Rated operation power at AC-3, 400 V
13 kW
Rated short-time withstand current lcw
0.64 kA
Rated operation power at AC-23, 400 V
15 kW
Switching power at 400 V
15 kW
Conditioned rated short-circuit current Iq
80 kA
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Colour control element
Black
Type of control element
Door coupling rotary drive
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Degree of protection (NEMA)
12
With pre-assembled cabling
No
Width
100 mm
Height
180 mm
Depth
115 mm
Suitable for floor mounting
No
Housing colour
Black
Housing material
Plastic
