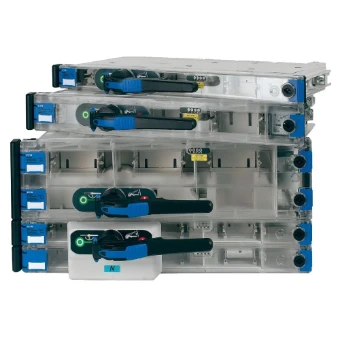

PIFT 3P 100kA NH-00, 3xCT kl1 150-1, CCAE
Add to selection
General information
Ordercode YESSS
1801-7440
Product code
163911
EAN code
04015081604418
Product group
Fuse switch disconnector
Brand
Eaton
Serie
PIFT
Type
PIFT0H331C151CCAE
PIFT 3P 100kA NH-00, 3xCT kl1 150-1, CCAE
PIFT 3P 100kA NH-00, 3xCT kl1 150-1, CCAE
STOCK
IN STOCK
0
piece
Product description
Eaton PIFT PIFT0H331C151CCAE PIFT 3P 100kA NH-00, 3xCT kl1 150-1, CCAE
Product specifications
Version as main switch
No
Version as safety switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
160 A
Rated operation power at AC-23, 400 V
0 kW
Conditioned rated short-circuit current Iq
100 kA
Rated short-time withstand current lcw
0 kA
Suitable for fuses
NH00
Number of poles
3
With error protection
Yes
Type of electrical connection of main circuit
Screw connection
Cable entry
Side
Equipped with connectors
Yes
Suitable for busbar mounting
No
Type of control element
Long rotary handle
Position control element
Front side
Motor drive optional
Yes
Motor drive integrated
No
Version as emergency stop installation
No
Degree of protection (IP), front side
IP40
Suitable for floor mounting
No
Suitable for front mounting
Yes
