DC circuit beveiliging 12A
Add to selection
General information
Ordercode YESSS
0999-5359
Product code
120937
EAN code
04015081187676
Product group
Power circuit-breaker for trafo/generator/installation protection
Brand
Eaton
Serie
PKZ
Type
PKZ-SOL12
DC circuit beveiliging 12A
DC circuit beveiliging 12A
STOCK
IN STOCK
0
piece
Product description

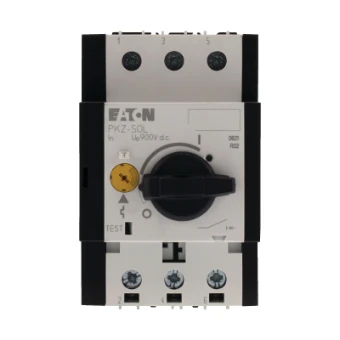

Eaton PKZ PKZ-SOL12 DC circuit beveiliging 12A
Product specifications
Rated permanent current Iu
12 A
Rated voltage
900 - 900 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
0 kA
Overload release current setting
8 - 12 A
Adjustment range short-term delayed short-circuit release
0 - 0 A
Adjustment range undelayed short-circuit release
72 - 72 A
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
Yes
DIN rail (top hat rail) mounting optional
Yes
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
Number of poles
2
Position of connection for main current circuit
Other
Type of control element
Turn button
Complete device with protection unit
Yes
Motor drive integrated
No
Motor drive optional
No
Degree of protection (IP)
IP20
With integrated under voltage release
No
Power loss
4.5 W
