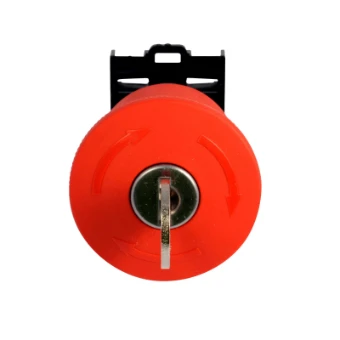

NOOD-UIT-knop, D=45mm, sleutelontgrendeld, RONIS
Add to selection
General information
Ordercode YESSS
1117-3624
Product code
121466
EAN code
04015081192861
Product group
Front element for mushroom push-button
Brand
Eaton
Serie
RMQ M22
Type
M22-PVS45P-RS
NOOD-UIT-knop, D=45mm, sleutelontgrendeld, RONIS
NOOD-UIT-knop, D=45mm, sleutelontgrendeld, RONIS
STOCK
IN STOCK
0
piece
Product description
Noodstop-/nooduit-drukknop, assortiment: RMQ-Titan, los apparaat, uitvoering: Palmboom-vorm, Diameter: 45 mm, Verlichting: niet verlicht, Sleutelontgrendeling, Beschrijving: Manipulatieveilig volgens ISO 13850/EN 418, Kleur paddenstoelkop: rood, Kleur basis: geel, RAL 3000, Beschermingsgraad: IP66, IP67, IP69K, Aansluiting op SmartWire-DT: nee, Instructies: Max. aantal contacten: vier M22-(C)K01, ...10 of twee M22-(C)K02, …20, …11, Informatie over geleverde apparatuur: 1 sleutel standaard meegeleverd, Normen: IEC/EN 60947, VDE 0660
Product specifications
Colour button
Red
Construction type lens
Round
Diameter cap
45 mm
Hole diameter
22.5 mm
Width opening
0 mm
Height opening
0 mm
Degree of protection (IP)
IP67/IP69K
Degree of protection (NEMA)
4X
Type of button
High
Suitable for lighting
No
Switching function latching
Yes
Spring-return
No
With front ring
No
Material front ring
Other
Colour front ring
Other
Suitable for emergency stop
Yes
Unlocking method
Key-release
With lighting
No
Supply voltage lamp
0 V
Product information
