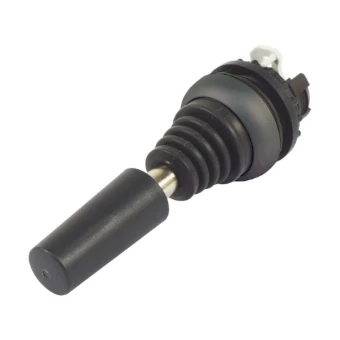

Joystick robuust 2 standen, vertikaal, terugverend, zwarte ring
Add to selection
General information
Ordercode YESSS
2189-4949
Product code
178573
EAN code
04015081739028
Product group
Control switch, Joystick
Brand
Eaton
Serie
RMQ M22
Type
M22S-WJS2V
Joystick robuust 2 standen, vertikaal, terugverend, zwarte ring
Joystick robuust 2 standen, vertikaal, terugverend, zwarte ring
STOCK
IN STOCK
0
piece
Product description
Joystick, Assortiment: RMQ-Titan, Los apparaat, Beschrijving: met één bedieningspunt per bedieningsrichting, met metalen as, 2 standen, Beschermingsgraad: IP66, Frontring: zwart, Aansluiting op SmartWire-DT: ja, met SWD-RMQ-verbindingen, Functie: terugverend, verticaal, Normen: IEC/EN 60947, VDE 0660
Product specifications
Rated operation current Ie at AC-21, 400 V
0 A
Centre mounting, hole diameter
22.5 mm
Joy stick length
75 mm
Number of actuation directions
2
Number of normally open contacts per actuation direction
0
Number of normally closed contacts per actuation direction
0
Number of make-and-break contacts per direction
0
With retraction in 0-position
Yes
Locking in 0-position
No
Coder
No
Analogue output signal configurable
No
With front ring
Yes
Material front ring
Plastic
Colour front ring
Black
Degree of protection (IP)
IP66
Degree of protection (NEMA)
4X, 13
Number of switch positions
1
