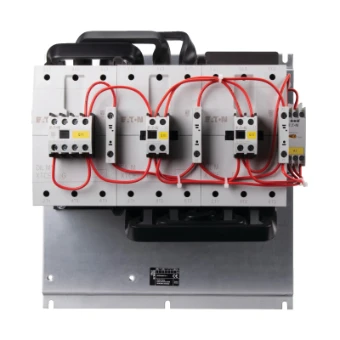

Automatische sterdriehoekschakelaar SDAINLM260(230V50HZ,240V60HZ)
Add to selection
General information
Ordercode YESSS
0187-5793
Product code
101031
EAN code
04015081009282
Product group
Combination of contactors
Brand
Eaton
Serie
SDAINL
Type
SDAINLM260(230V50HZ,240V60HZ)
Automatische sterdriehoekschakelaar SDAINLM260(230V50HZ,240V60HZ)
Automatische sterdriehoekschakelaar SDAINLM260(230V50HZ,240V60HZ)
STOCK
IN STOCK
0
piece
Product description
Sterdriehoek-schakelaarcombinatie, toepassing: Sterdriehoek motorstarter voor motorstartercombinaties, bedrijfsfrequentie: maximaal 30 starts per uur, toebehoren: Sterdriehoek combinaties SDAINL, gebruikscategorie: NAC-3: Normale AC-inductiemotoren: Starten, uitschakelen tijdens bedrijf, nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 260 A, max. vermogen voor driefasige motoren, 50 - 60 Hz AC-3 220 V 230 V: P= 75 kW, 380 V 400 V: P= 132 kW, 500 V: P= 160 kW, 660 V 690 V: P= 160 kW, max. omschakeltijd: 20 s, stuurspanning: 230 V 50 Hz, 240 V 60 Hz, spanning AC/DC: AC-werking
Product specifications
Function
Star-delta contactor
Rated control supply voltage AC 50 Hz
230 - 230 V
Rated control supply voltage AC 60 Hz
240 - 240 V
Rated control supply voltage DC
0 - 0 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
260 A
Rated operation power at AC-3, 400 V
132 kW
Rated operation power NEMA
0 kW
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP)
IP00
Degree of protection (NEMA)
Other
Rated operation current Ie at AC-1, 400 V
260 A
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
9
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Suitable for rail mounting
No
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
230 - 690 V
Operating voltage AC 60 Hz
230 - 690 V
Operating voltage DC
0 - 0 V
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Width
308 mm
Height
314 mm
Depth
183 mm
