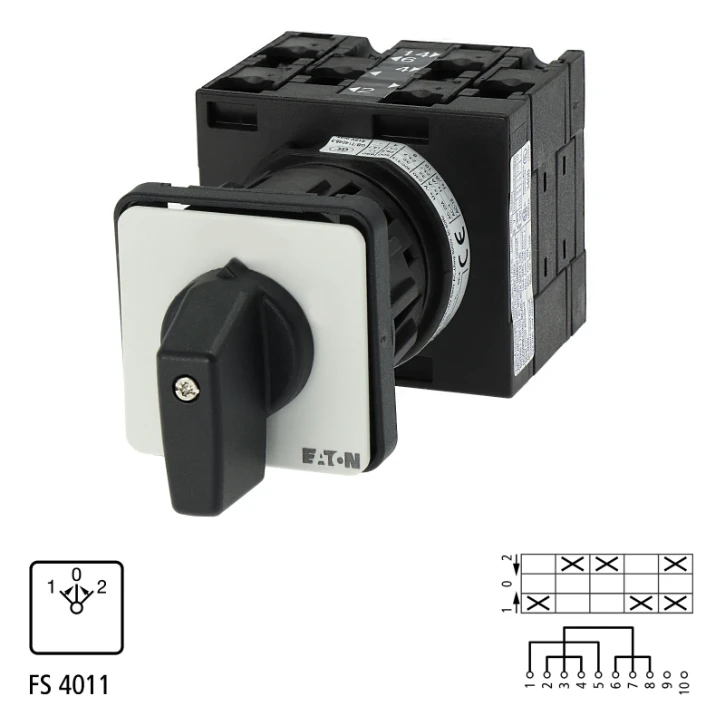

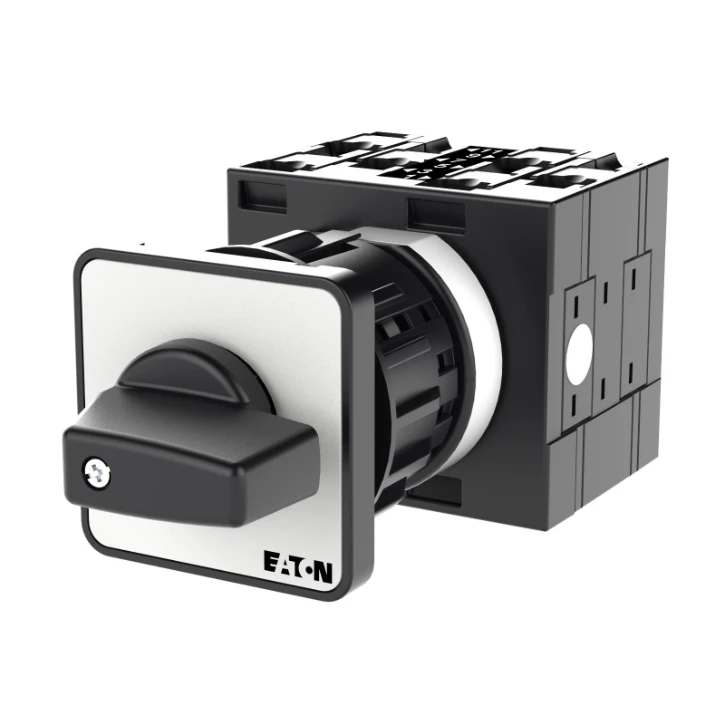

Omkeerschakelaar, contacten: 5, 32 A, frontplaat: 1>0<2, 45 °, terugve
Add to selection
General information
Ordercode YESSS
0036-4507
Product code
000695
EAN code
04015080006954
Product group
Off-load switch
Brand
Eaton
Serie
T nokkenschakelaar
Type
T3-3-8228/EZ
Omkeerschakelaar, contacten: 5, 32 A, frontplaat: 1>0<2, 45 °, terugve
Omkeerschakelaar, contacten: 5, 32 A, frontplaat: 1>0<2, 45 °, terugve
STOCK
IN STOCK
0
piece
Product description

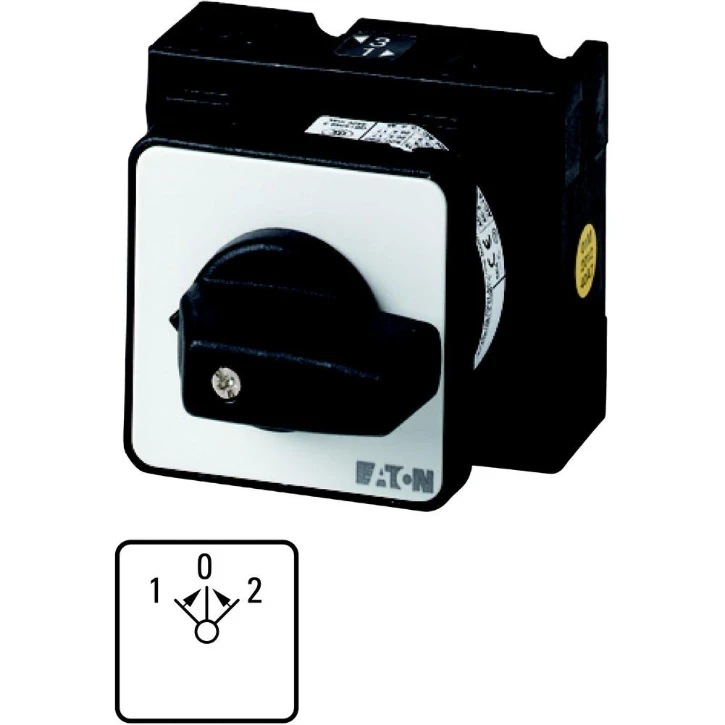

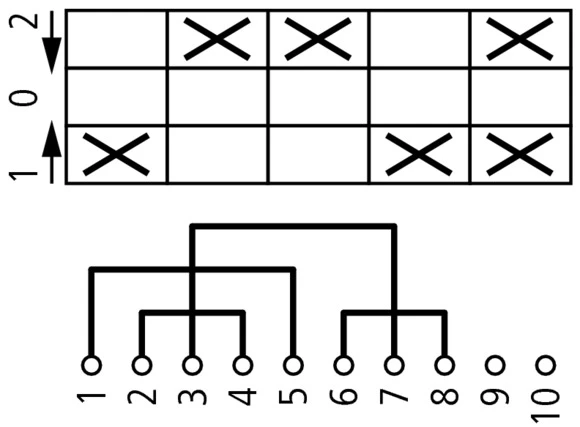

Omkeerschakelaar, assortiment: Bedieningsschakelaars, familie type: T3, met zwarte draaigreep en frontplaat, contacten: 5, Beschermingsgraad: Front IP65, uitvoering: eengatsmontage, schakelhoek: 45 °, Schakelstand: terugverend, Met 0 (uit) positie, terugverend van beide richtingen naar 0, frontplaat: 1>0<2, Motorvermogen AC-23A, 50 - 60 Hz 400 V: P = 15 kW, nominale ononderbroken stroom: Iu = 32 A, 3 schakelkamer(s), Normen en bepalingen: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, lastscheider volgens IEC/EN 60947-3
Product specifications
Model
Reversing switch
Number of poles
3
With zero (off) position
Yes
With retraction in 0-position
Yes
Rated permanent current Iu
32 A
Rated operation current Ie at AC-3, 400 V
23.7 A
Rated operation power at AC-3, 400 V
12 kW
Degree of protection (IP), front side
IP65
Degree of protection (NEMA), front side
12
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Complete device in housing
No
Housing material
Plastic
Type of control element
Short rotary handle
Type of electrical connection of main circuit
Screw connection
Suitable for floor mounting
No
Suitable for front mounting
Yes
