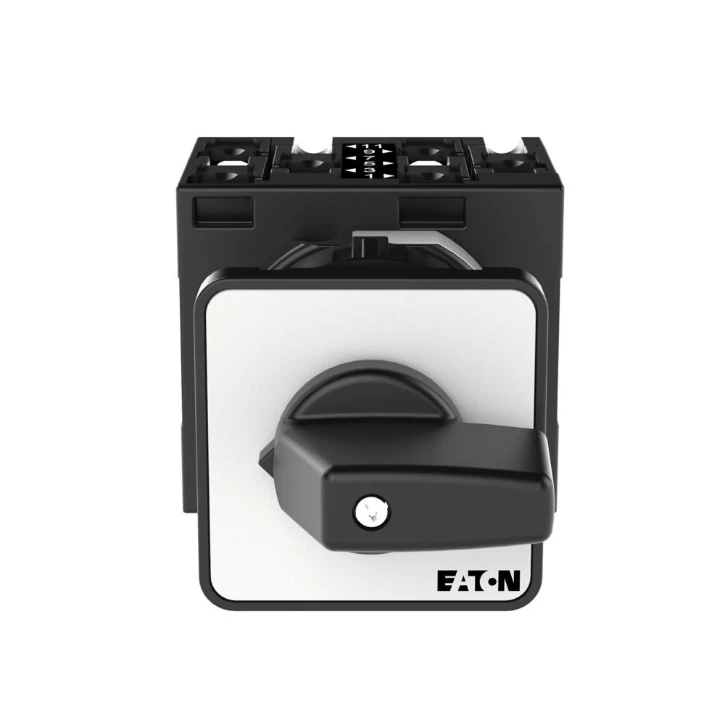

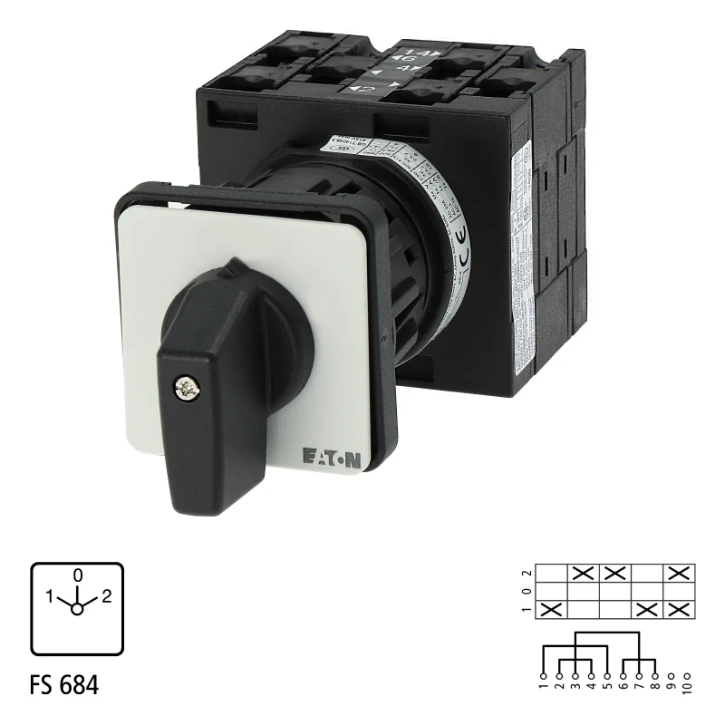

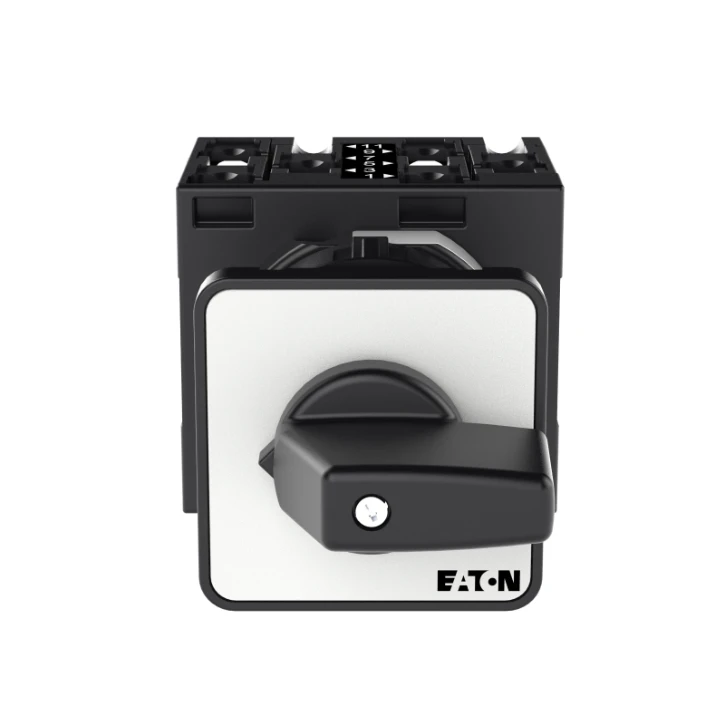

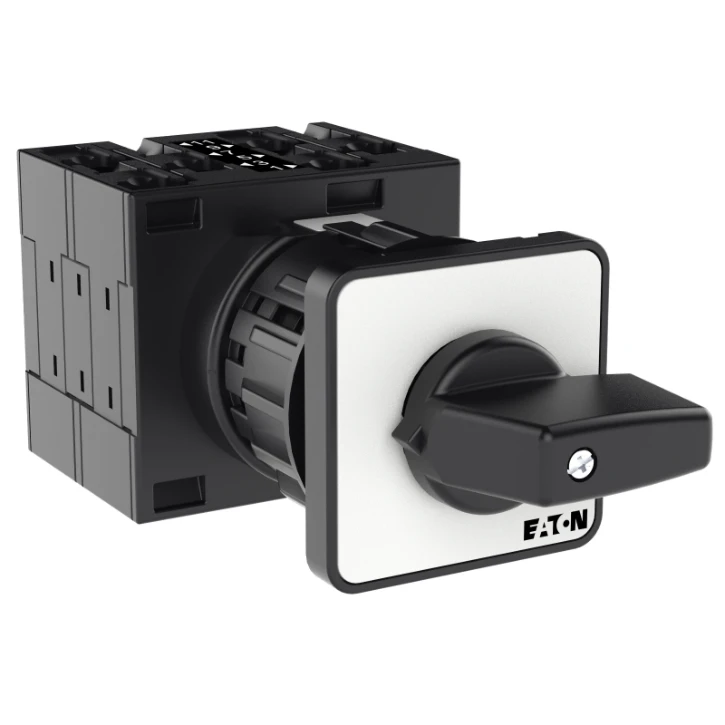

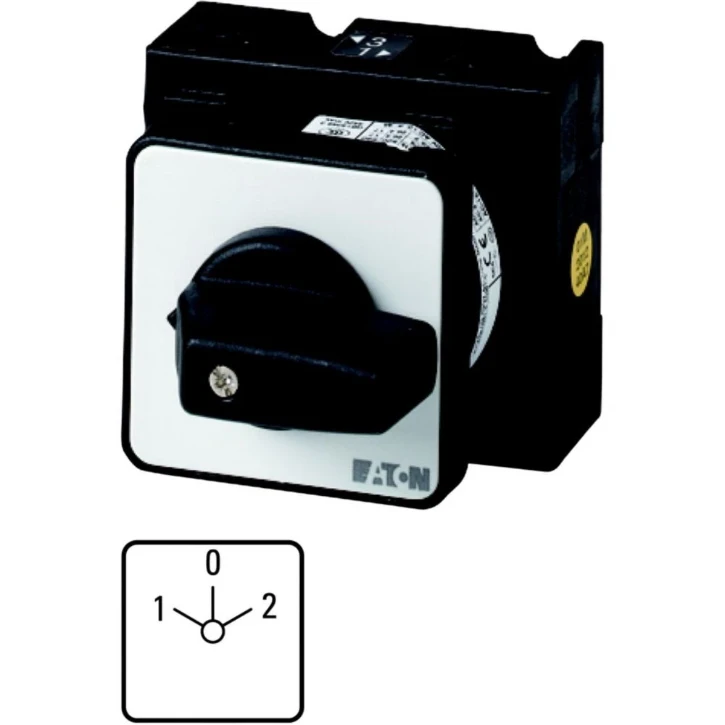

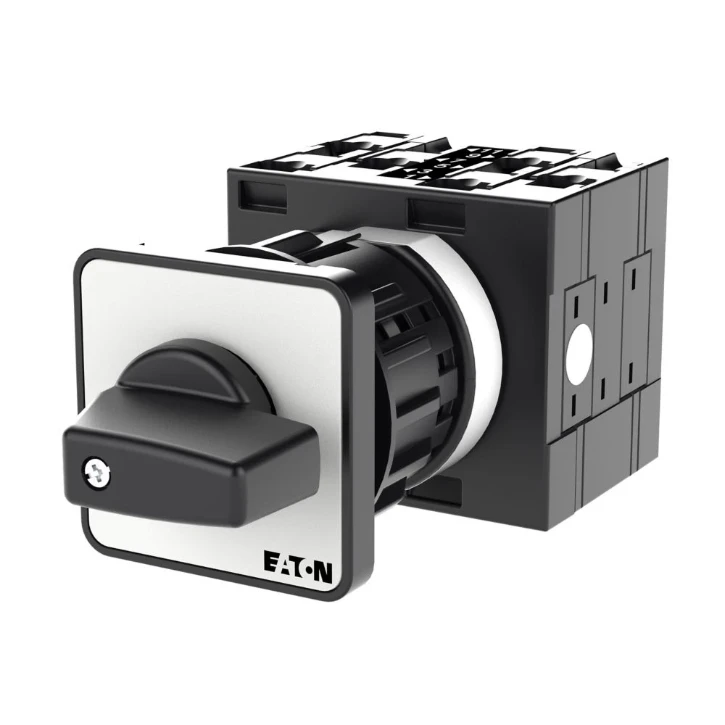

Omkeerschakelaar, contacten: 5, 32 A, frontplaat: 1-0-2, 60 °, vast,
- 0036-4504
- |
- 000694
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Omkeerschakelaar, contacten: 5, 32 A, frontplaat: 1-0-2, 60 °, vast,
Omkeerschakelaar, contacten: 5, 32 A, frontplaat: 1-0-2, 60 °, vast, e
Ordercode YESSS
0036-4504
Product code
000694
EAN code
04015080006947
Product group
Off-load switch
Brand
Eaton
Serie
T nokkenschakelaar
Type
T3-3-8401/EZ
Product description
Omkeerschakelaar, handelsnaam: T3, nominale bedrijfsstroom (Ie) bij AC-21, 440 V: 32 A, montagewijze: Eengats frontinbouw, aantal schakelkamer(s): 3, schakelhoek: 60°, actor functie: Met 0 (uit) positie, vast, beschermingsgraad: IP65, NEMA 12, NEMA 1, opdruk: 1-0-2, referentienummer: 8401
Product specifications
Model
Reversing switch
Number of poles
3
With zero (off) position
Yes
With retraction in 0-position
No
Rated permanent current Iu
32 A
Rated operation current Ie at AC-3, 400 V
23.7 A
Rated operation power at AC-3, 400 V
12 kW
Degree of protection (IP), front side
IP65
Degree of protection (NEMA), front side
12
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Complete device in housing
No
Housing material
Plastic
Type of control element
Short rotary handle
Type of electrical connection of main circuit
Screw connection
Suitable for floor mounting
No
Suitable for front mounting
Yes
