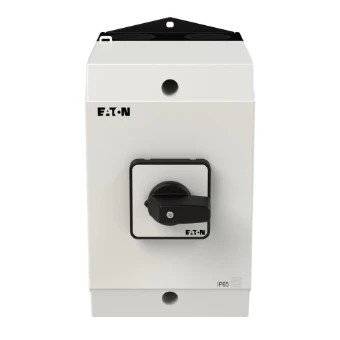

Off-load switch Eaton
Add to selection
General information
Ordercode YESSS
0039-5728
Product code
207536
EAN code
04015082075361
Product group
Off-load switch
Brand
Eaton
Product specifications
Model
Reverser
Number of poles
5
With zero (off) position
No
With retraction in 0-position
No
Rated permanent current Iu
32 A
Rated operation current Ie at AC-3, 400 V
23.7 A
Rated operation power at AC-3, 400 V
12 kW
Degree of protection (IP), front side
IP65
Degree of protection (NEMA), front side
12
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Complete device in housing
Yes
Housing material
Plastic
Type of control element
Short rotary handle
Type of electrical connection of main circuit
Screw connection
