General information

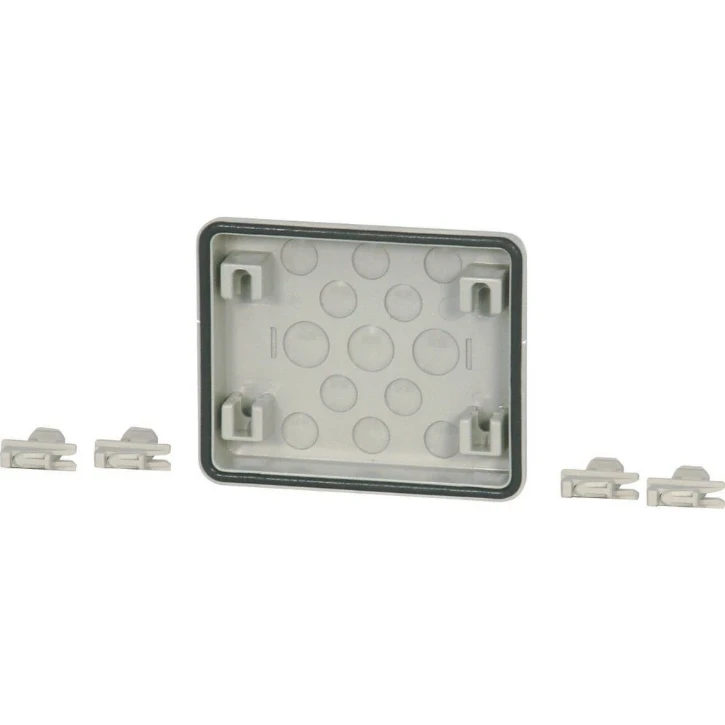

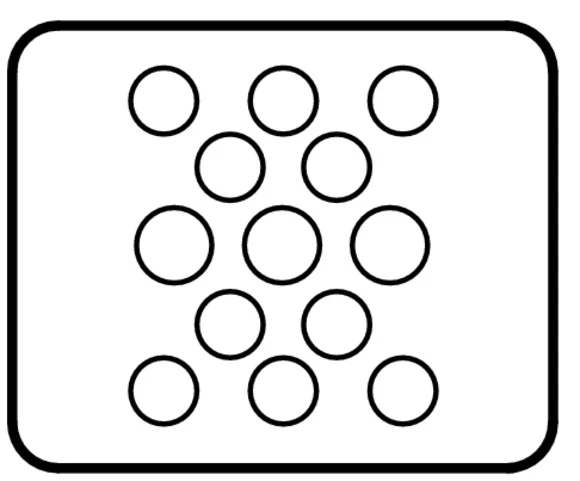

Flens, doordrukgaten 10x M16, 3x M20, HxBxD=116x187.5x23mm
Flens, doordrukgaten 10x M16, 3x M20, HxBxD=116x187.5x23mm
Ordercode YESSS
0036-1258
Product code
017898
EAN code
04015080178989
Product group
Gland plate for enclosure/cabinet
Brand
Eaton
Serie
xEnergy Safety CI
Type
FL2-2
Product description
Flens van isolatiemateriaal, beschermingsgraad: IP65, sponsrubber, Borgende pakking, snelmontage met spie-verbinding borging (bij de levering inbegrepen), voor behuizingsafmetingen van 187.5 mm, kabelinvoer 10xM16, 3xM20, RAL 7035
Product specifications
Model
Cable screw gland
Type
Straight
Width
142 mm
Height
23 mm
Material
Plastic
Surface protection
Untreated
Degree of protection (NEMA)
Other
Pre-stamping
Yes
Number of connector holes
0
Thread type
Metric
Suitable for nominal thread metric/PG
16 - 20
Thickness
4 mm
