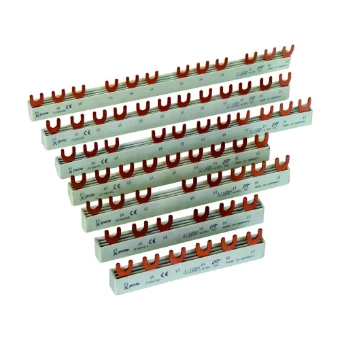

Kamrail EVG, Vork, 16mm2, 80A, 3P, 6TE
Add to selection
General information
Ordercode YESSS
0187-4611
Product code
291470
EAN code
04015082914707
Product group
Phase busbar
Brand
Eaton
Serie
xPole
Type
EVG-16/3PHAS/6MODUL
Kamrail EVG, Vork, 16mm2, 80A, 3P, 6TE
Kamrail EVG, Vork, 16mm2, 80A, 3P, 6TE
STOCK
IN STOCK
0
piece
Product description
Railssystemen: flashovers worden geminimaliseerd Gebruik van eindkappen niet nodig Bespaart 30% montagetijd
Product specifications
Number of phases
3
Number of poles
3
Suitable for number of devices
2
Module width
0 mm
Cross section
16 mm²
Length
33 mm
Rated permanent current Iu
80 A
Type of electric connection
Fork
Insulated
Yes
Rated surge voltage
4 kV
Conditioned rated short-circuit current Iq
25 kA
Max. rated operation voltage Ue
415 V
Rated short-time withstand current lcw
0 kA
Suitable for devices with N-conductor
No
Suitable for devices with auxiliary switch
No
Width in number of modular spacings
6
Colour
Other
Can be cut to size
No
