General information

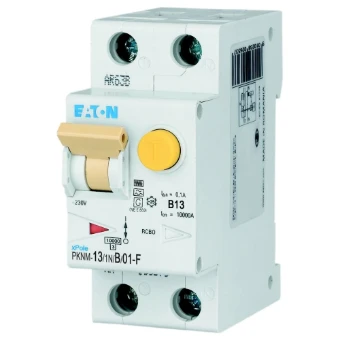

Aardlekautomaat (RCBO) PKNM, B-kar., 2P incl. N, 13 A, 100
Aardlekautomaat (RCBO) PKNM, B-kar., 2P incl. N, 13 A, 100 mA, 10kA, F
Ordercode YESSS
3052-3441
Product code
193602
EAN code
09010238026827
Product group
Earth leakage circuit breaker
Brand
Eaton
Serie
xPole
Type
PKNM-13/1N/B/01-F-MW
Product description
Eaton xPole PKNM-13/1N/B/01-F-MW Aardlekautomaat (RCBO) PKNM, B-kar., 2P incl. N, 13 A, 100 mA, 10kA, F-type
Product specifications
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Rated current
13 A
Rated fault current
0.1 A
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to EN 61009
10 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
10 kA
Disconnection characteristic
Undelayed
Surge current capacity
3 kA
Voltage type
AC
Frequency
50 Hz
Release characteristic
B
Concurrently switching neutral conductor
Yes
With interlocking device
No
Overvoltage category
3
Pollution degree
2
Ambient temperature during operating
-25 - 40 °C
Width in number of modular spacings
2
Built-in depth
75.5 mm
Anti-nuisance tripping version
Yes
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1 - 25 mm²
Connectable conductor cross section multi-wired
1 - 25 mm²
Mounting method
DIN rail
