General information

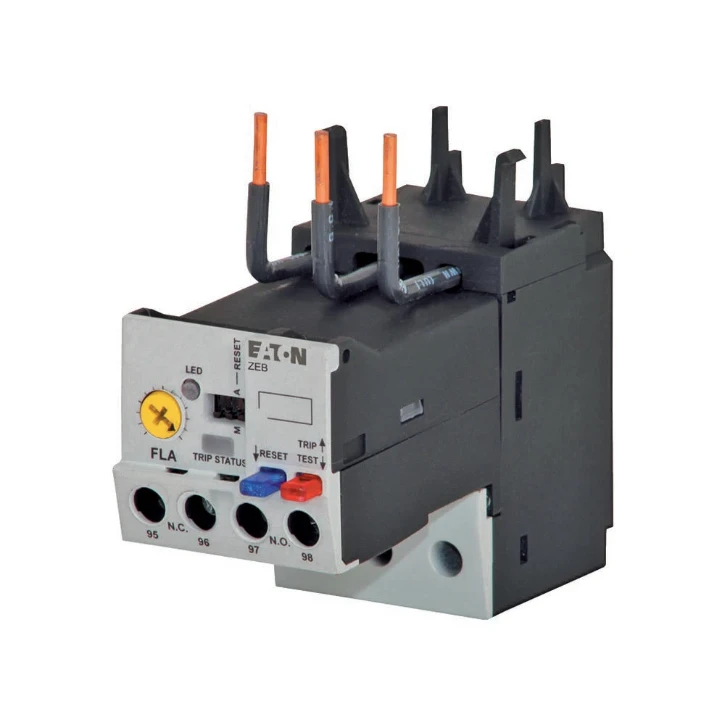

Electronisch bev. relais ZEB12 0,33-1,65A direct aanbouw
Electronisch bev. relais ZEB12 0,33-1,65A direct aanbouw
Ordercode YESSS
1283-2117
Product code
136480
EAN code
04015081332601
Product group
Electronic overload relay
Brand
Eaton
Serie
ZEB
Type
ZEB12-1,65
Product description
Overbelastingsrelais, assortiment: Elektronisch motorbeveiligingsrelais ZEB, Fase-uitvalgevoeligheid: IEC/EN 60947, VDE 0660 deel 102, beschrijving: test/uit-knop, Reset drukknop, Handmatige/automatische reset selecteerbaar, Bescherming met zwaar aanlopen (Class 10 A-30), Montagetype: directe montage, hulpcontacten no = normaal open: 1 no, hulpcontacten nc = normaal gesloten: 1 nc, voor gebruik met: DILM7, DILM9, DILM12, DILM15, DIULM7, DIULM9, DIULM12, SDAINLM12, SDAINLM16, SDAINLM22, Normen en bepalingen: IEC/EN 60947, VDE 0660, UL, CSA, beschermingsgraad: IP20
Product specifications
Adjustable current range
0.33 - 1.65 A
Mounting method
Direct attachment
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Release class
Adjustable
Voltage type for actuating
AC
Reset function automatic
Yes
Reset function input
No
Reset function push-button
Yes
External power supply required
No
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
230 - 690 V
Operating voltage AC 60 Hz
230 - 690 V
Width
45 mm
Height
110 mm
Depth
108 mm
