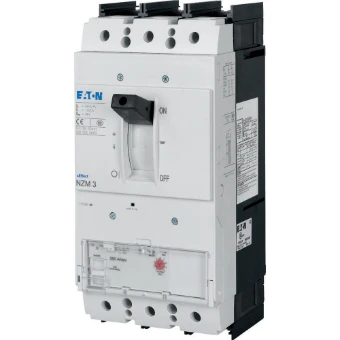

NZM3, 50kA, 3P, 350A, UL/IEC
Add to selection
General information
Ordercode YESSS
0040-6360
Product code
269277
EAN code
04015082692773
Product group
Power circuit-breaker for trafo/generator/installation protection
Brand
Eaton
Serie
MCCB's & Accessoires
Type
NZMN3-AEF350-NA
NZM3, 50kA, 3P, 350A, UL/IEC
NZM3, 50kA, 3P, 350A, UL/IEC
STOCK
IN STOCK
0
piece
Product description
Vermogensautomaat NZM3, 3-polig, Schakelvermogen SCCR 480Y/277 V 60 Hz( Icu ): 100 kA, Schakelvermogen SCCR 480 V 60 Hz( Icu ): 42 kA, Nominale bedrijfsstroom = nominale ononderbroken stroom ( In = Iu): 350 A, Installatietype: Vast, schroefaansluiting, norm/goedkeuring: UL/CSA, IEC, Beschermingsfunctie: Installatie- en kabelbeveiliging
Product specifications
Rated permanent current Iu
350 A
Rated voltage
690 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
50 kA
Overload release current setting
350 - 350 A
Adjustment range short-term delayed short-circuit release
0 - 0 A
Adjustment range undelayed short-circuit release
700 - 3850 A
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Rocker lever
Complete device with protection unit
Yes
Motor drive integrated
No
Motor drive optional
Yes
Degree of protection (IP)
IP20
With integrated under voltage release
No
