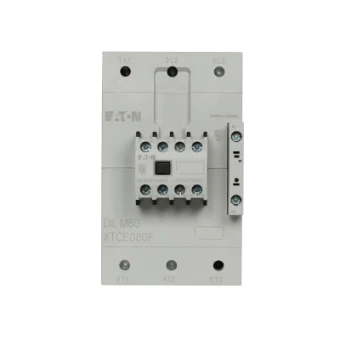

Magneetschakelaar DILM80-22(230V50/60HZ), 37kW, 2m, 2v
Add to selection
General information
Ordercode YESSS
0043-6111
Product code
239457
EAN code
04015082394578
Product group
Power contactor, AC switching
Brand
Eaton
Serie
DILM
Type
DILM80-22(230V50/60HZ)
Magneetschakelaar DILM80-22(230V50/60HZ), 37kW, 2m, 2v
Magneetschakelaar DILM80-22(230V50/60HZ), 37kW, 2m, 2v
STOCK
IN STOCK
0
piece
Product description
Magneetschakelaar, toepassing: Magneetschakelaars voor motoren, complete apparaten tot 170 A, gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, AC-4: Normale AC-inductiemotoren: starten, tegenstroomremmen, omkeren, tippen, aansluittechniek: Schroefklemmen, opmerkingen: Ook geschikt voor motoren met rendementsklasse IE3. IE3-ready apparaten zijn te herkennen aan het logo op hun verpakking. Nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 80 A, nominale bedrijfsstroom AC-1 conventionele thermische stroom in vrije lucht, 3-polig
Product specifications
Rated control supply voltage AC 50 Hz
230 - 230 V
Rated control supply voltage AC 60 Hz
230 - 230 V
Rated control supply voltage DC
0 - 0 V
Voltage type for actuating
AC
Rated operation current Ie at AC-1, 400 V
110 A
Rated operation current Ie at AC-3, 400 V
80 A
Rated operation power at AC-3, 400 V
37 kW
Rated operation current Ie at AC-4, 400 V
40 A
Rated operation power at AC-4, 400 V
20 kW
Rated operation power NEMA
44.7 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
2
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Operating voltage AC 50 Hz
230 - 690 V
Operating voltage AC 60 Hz
230 - 690 V
Width
90 mm
Height
170 mm
Depth
175 mm
