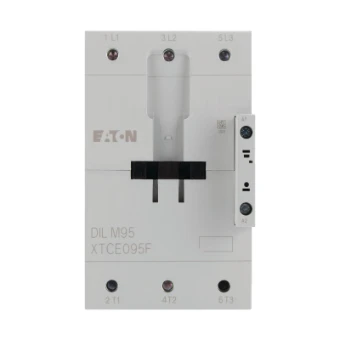

Magneetschakelaar DILM95(24V50/60HZ), 45kW, 0m, 0v
Add to selection
General information
Ordercode YESSS
0043-6186
Product code
239484
EAN code
04015082394844
Product group
Power contactor, AC switching
Brand
Eaton
Serie
DILM
Type
DILM95(24V50/60HZ)
Magneetschakelaar DILM95(24V50/60HZ), 45kW, 0m, 0v
Magneetschakelaar DILM95(24V50/60HZ), 45kW, 0m, 0v
STOCK
IN STOCK
0
piece
Product description
Magneetschakelaar, toepassing: Magneetschakelaars voor motoren, Magneetschakelaars tot 170 A, 3-polig, Gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, AC-4: Normale AC-inductiemotoren: starten, tegenstroomremmen, omkeren, tippen, aansluittechniek: schroefklemmen, Opmerkingen: Ook geschikt voor motoren met efficiëntieklasse IE3., IE3-ready apparaten zijn te herkennen aan het logo op hun verpakking., Aantal polen: 3-polig, Nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 95 A, Nominale bedrijfsstroom AC-1 Conventionele thermische stroom in vrije lucht, 3-polig
Product specifications
Rated control supply voltage AC 50 Hz
24 - 24 V
Rated control supply voltage AC 60 Hz
24 - 24 V
Rated control supply voltage DC
0 - 0 V
Voltage type for actuating
AC
Rated operation current Ie at AC-1, 400 V
130 A
Rated operation current Ie at AC-3, 400 V
95 A
Rated operation power at AC-3, 400 V
45 kW
Rated operation current Ie at AC-4, 400 V
50 A
Rated operation power at AC-4, 400 V
26 kW
Rated operation power NEMA
55 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Operating voltage AC 50 Hz
230 - 690 V
Operating voltage AC 60 Hz
230 - 690 V
Width
90 mm
Height
170 mm
Depth
160 mm
