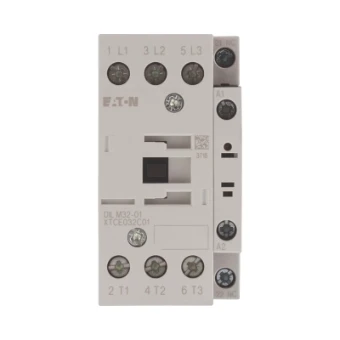

Magneetschakelaar DILM32-01(RDC240) (200-240VDC), 15kW, 0m, 1v
Add to selection
General information
Ordercode YESSS
0043-9501
Product code
277309
EAN code
04015082773090
Product group
Power contactor, AC switching
Brand
Eaton
Serie
DILM
Type
DILM32-01(RDC240)
Magneetschakelaar DILM32-01(RDC240) (200-240VDC), 15kW, 0m, 1v
Magneetschakelaar DILM32-01(RDC240) (200-240VDC), 15kW, 0m, 1v
STOCK
IN STOCK
0
piece
Product description
Magneetschakelaar, toepassing: Magneetschakelaars voor motoren, magneetschakelaars tot 170 A, 3-polig, gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, AC-4: Normale AC-inductiemotoren: starten, tegenstroomremmen, omkeren, tippen, aansluittechniek: Schroefklemmen, opmerkingen: Ook geschikt voor motoren met rendementsklasse IE3. IE3-ready apparaten zijn te herkennen aan het logo op hun verpakking. Aantal polen: 3-polig, nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 32 A, nominale bedrijfsstroom AC-1 conventionele thermische stroom in vrije lucht, 3-polig
Product specifications
Rated control supply voltage AC 50 Hz
0 - 0 V
Rated control supply voltage AC 60 Hz
0 - 0 V
Rated control supply voltage DC
200 - 240 V
Voltage type for actuating
DC
Rated operation current Ie at AC-1, 400 V
45 A
Rated operation current Ie at AC-3, 400 V
32 A
Rated operation power at AC-3, 400 V
15 kW
Rated operation current Ie at AC-4, 400 V
15 A
Rated operation power at AC-4, 400 V
7 kW
Rated operation power NEMA
14.9 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Operating voltage AC 50 Hz
24 - 690 V
Operating voltage AC 60 Hz
24 - 690 V
Width
45 mm
Height
85 mm
Depth
97 mm
