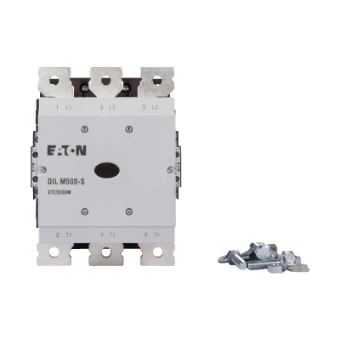

Magneetschakelaar DILM500-S/22(110-120V50/60HZ), 250kW, 2m, 2v
Add to selection
General information
Ordercode YESSS
0044-4592
Product code
274198
EAN code
04015082741983
Product group
Power contactor, AC switching
Brand
Eaton
Serie
DILM
Type
DILM500-S/22(110-120V50/60HZ)
Magneetschakelaar DILM500-S/22(110-120V50/60HZ), 250kW, 2m, 2v
Magneetschakelaar DILM500-S/22(110-120V50/60HZ), 250kW, 2m, 2v
STOCK
IN STOCK
0
piece
Product description
Magneetschakelaar, toepassing: Magneetschakelaars voor motoren, standaardapparaten groter dan 170 A, gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, AC-4: Normale AC-inductiemotoren: starten, tegenstroomremmen, omkeren, tippen, aansluittechniek: Schroefaansluiting, nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 500 A, nominale bedrijfsstroom AC-1 conventionele thermische stroom in vrije lucht, 3-polig, 50 - 60 Hz open bij 40 °C: Ith =Ie= 800 A, in kast: Ith= 600 A, nominale bedrijfsstroom AC-1 conventionele thermische stroom in vrije lucht
Product specifications
Rated control supply voltage AC 50 Hz
110 - 120 V
Rated control supply voltage AC 60 Hz
110 - 120 V
Rated control supply voltage DC
0 - 0 V
Voltage type for actuating
AC
Rated operation current Ie at AC-1, 400 V
800 A
Rated operation current Ie at AC-3, 400 V
500 A
Rated operation power at AC-3, 400 V
250 kW
Rated operation current Ie at AC-4, 400 V
360 A
Rated operation power at AC-4, 400 V
200 kW
Rated operation power NEMA
298 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
2
Type of electrical connection of main circuit
Rail connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Operating voltage AC 50 Hz
110 - 120 V
Operating voltage AC 60 Hz
110 - 120 V
Width
160 mm
Height
219 mm
Depth
216 mm
