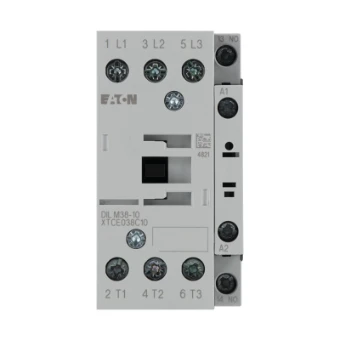

Magneetschakelaar DILM38-10(RDC240) (200-240VDC), 18,5kW, 1m, 0v
Add to selection
General information
Ordercode YESSS
0635-0545
Product code
112445
EAN code
04015081120017
Product group
Power contactor, AC switching
Brand
Eaton
Serie
DILM
Type
DILM38-10(RDC240)
Magneetschakelaar DILM38-10(RDC240) (200-240VDC), 18,5kW, 1m, 0v
Magneetschakelaar DILM38-10(RDC240) (200-240VDC), 18,5kW, 1m, 0v
STOCK
IN STOCK
0
piece
Product description
Magneetschakelaar, toepassing: Magneetschakelaars voor motoren, magneetschakelaars tot 170 A, 3-polig, gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, AC-4: Normale AC-inductiemotoren: starten, tegenstroomremmen, omkeren, tippen, aansluittechniek: Schroefklemmen, opmerkingen: Niet geschikt voor motoren met efficiëntieklasse IE3. Aantal polen: 3-polig, nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 38 A, nominale bedrijfsstroom AC-1 conventionele thermische stroom in vrije lucht, 3-polig, 50 - 60 Hz open bij 40 °C: Ith =Ie= 45 A, in behuizing: Ith = 36 A
Product specifications
Rated control supply voltage AC 50 Hz
0 - 0 V
Rated control supply voltage AC 60 Hz
0 - 0 V
Rated control supply voltage DC
200 - 240 V
Voltage type for actuating
DC
Rated operation current Ie at AC-1, 400 V
45 A
Rated operation current Ie at AC-3, 400 V
38 A
Rated operation power at AC-3, 400 V
18.5 kW
Rated operation current Ie at AC-4, 400 V
15 A
Rated operation power at AC-4, 400 V
7 kW
Rated operation power NEMA
14.9 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Operating voltage AC 50 Hz
24 - 690 V
Operating voltage AC 60 Hz
24 - 690 V
Width
45 mm
Height
85 mm
Depth
97 mm
