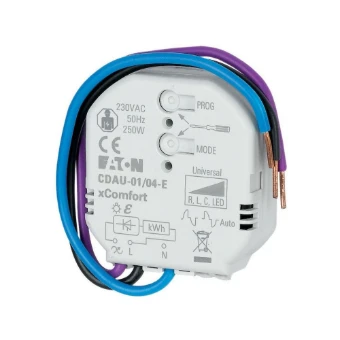

Dimactor, universeel, inbouw 250W, 230VAC met energie meetsensor
Add to selection
General information
Ordercode YESSS
2189-5624
Product code
182445
EAN code
04015081773725
Product group
Dimming actuator for bus system
Brand
Eaton
Serie
xComfort
Type
CDAU-01/04-E
Dimactor, universeel, inbouw 250W, 230VAC met energie meetsensor
Dimactor, universeel, inbouw 250W, 230VAC met energie meetsensor
STOCK
IN STOCK
0
piece
Product description
Compacte dimactor 0-250 W/230 VAC met energiemeting. Geschikt om verschillende belastingen te dimmen en/of te schakelen, waaronder dimbare en niet-dimbare leds (alleen aan/uit). Dimt zelfs de kleinste ledbelasting, vanaf 0 W! Eenvoudig een DIM-profiel selecteren of zelf definiëren voor de beste dimprestaties. Zeer energie efficiënt. Beveiligd tegen kortsluiting, overbelasting en te hoge temperaturen met automatisch herstel. Compact ontwerp voor installatie achter conventionele wandschakelaars, bewegingssensoren, wandcontactdozen of in muurinbouwdozen.
Product specifications
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
xComfort
Radio frequency bidirectional
Yes
Model
Dimming actuator
Mounting method
Flush-mounted
Width in number of modular spacings
3
With bus connection
No
Bus module detachable
No
Substation input
No
Local operation/hand operation
No
With LED indication
Yes
Number of outputs
1
Output power
0 - 250 W
Power boost suitable
No
Type of load
Universal and LED Retrofit
Max. control current
0 mA
Voltage
230 - 230 V
Parallel-service possible
No
Frequency
50 - 50 Hz
Degree of protection (IP)
IP20
Min. depth of built-in installation box
18 mm
Max. switching power LED
100 W
Compatible with Casambi
No
Bus system KNX Secure
No
Bus system KNX Secure-RF (Radio Frequency)
No
Number of linkable devices
32
Suitable for constant current
Yes
Suitable for constant voltage
Yes
