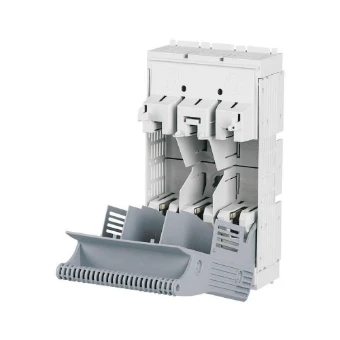

Fuse switch disconnector Eaton
Add to selection
General information
Ordercode YESSS
2308-8100
Product code
183034
EAN code
04015081779611
Product group
Fuse switch disconnector
Brand
Eaton
Product specifications
Version as main switch
No
Version as safety switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
160 A
Rated operation power at AC-23, 400 V
0 kW
Conditioned rated short-circuit current Iq
120 kA
Rated short-time withstand current lcw
7 kA
Suitable for fuses
NH00
Number of poles
3
With error protection
No
Type of electrical connection of main circuit
Frame clamp
Cable entry
Other
Equipped with connectors
No
Suitable for busbar mounting
Yes
Type of control element
Cover grip
Position control element
Front side
Motor drive optional
No
Motor drive integrated
No
Version as emergency stop installation
No
Degree of protection (IP), front side
Other
Product information
