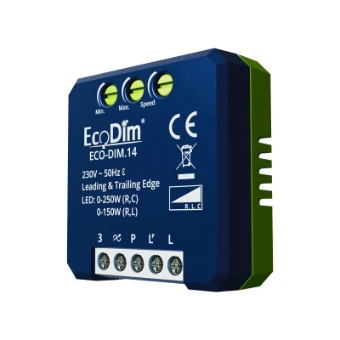

ECO-DIM.14 led dimmer module 0-250W (RLC)
Add to selection
General information
Ordercode YESSS
3089-4226
Product code
ECO-DIM.14
EAN code
08719322373557
Product group
Dimmer
Brand
EcoDim
Serie
Dimmers
Type
0-250W RLC
ECO-DIM.14 led dimmer module 0-250W (RLC)
ECO-DIM.14 led dimmer module 0-250W (RLC)
STOCK
IN STOCK
12
piece
Product description
Met de ECO-DIM.14 creëert u een goedkope tastdimmer. Wanneer u een ECO-DIM.14 dimmodule combineert met een pulsdrukker bent u namelijk veel goedkoper uit dan wanneer u een tastdimmer aanschaft. Deze module (RLC) is geschikt voor 0-250W LED. De installatie is 2-draads te realiseren (een nuldraad aansluiten is mogelijk). De inbouwdiepte is slechts 15mm. De module is voorzien van MIN, MAX (voor de optimale dimbaarheid) en Speed (voor de snelheid van het dimmen) afstellingen.
Product specifications
Assembly arrangement
Basic element
Operating method
Push button
Number of modules (module system)
0
App control via Bluetooth
No
Dimming phase cut-on (leading edge)
Yes
Dimming phase cut-off (trailing edge)
Yes
Serial dimmer
No
Type of load
Universal and LED Retrofit
Substation input
No
Light value memory
Yes
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Other
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Blue
RAL-number (similar)
5017
Transparent
No
Suitable for degree of protection (IP)
IP20
Impact strength
IK00
Nominal voltage
230 - 230 V
Frequency
50 - 60 Hz
Control voltage
230 - 230 V
Connection type
Screwed terminal
Core cross section
3 - 5 mm²
Device width
45 mm
Device height
45 mm
Device depth
15 mm
Min. depth of built-in installation box
40 mm
Nominal power resistive load
300 - 300 W
Nominal power inductive load
0 - 0 VA
Nominal power capacitive load
300 - 300 VA
Max. switching power LED
250 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Number of units
1
Min. brightness controllable
Yes
Power consumption
0 W
