1f Veiligheidstransfo -IP20- DIN-rail- 0-230-400V // 0-24V - P 30VA
- 3051-7532
- |
- EDR24TS30
2
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
1f Veiligheidstransfo -IP20- DIN-rail- 0-230-400V // 0-24V - P 30VA
1f Veiligheidstransfo -IP20- DIN-rail- 0-230-400V // 0-24V - P 30VA
Ordercode YESSS
3051-7532
Product code
EDR24TS30
EAN code
05414503003416
Product group
One-phase control transformer
Brand
Erea
Serie
Eénfase veiligheidstransformatoren
Type
1 fase
Product description
Eenfase veiligheidstransformator - IP20 - voor DIN-rail montage - Upri 0-230-400V Usec 0-24V - Vermogen 30VA
Product specifications
Built as safety transformer
Yes
Built as isolating transformer
No
Built as energy saving transformer
No
Primary voltage 1
230 - 230 V
Primary voltage 2
400 - 400 V
Secondary voltage 1
24 - 24 V
Rated apparent power
30 VA
Type of insulation material according to IEC 85
B
Short-circuit-proof
No
Relative short circuit voltage
12.6 %

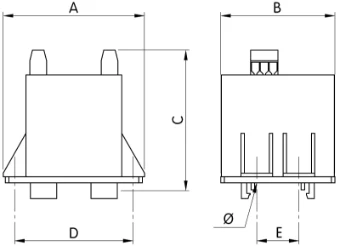

Width
81 mm
Height
81 mm
Depth
65 mm
Degree of protection (IP)
IP20
Ring core
No
Suitable for mounting on PCB
No
Suitable for distribution board
No
Conductor material
Copper
Power consumption in standby mode
2.6 W
