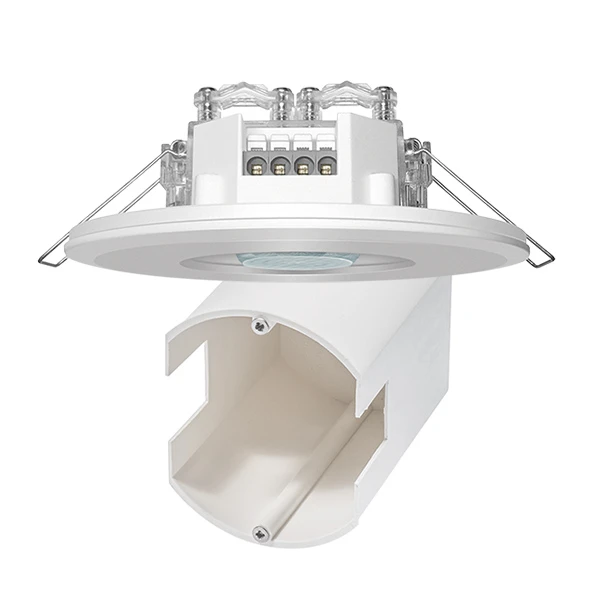

Plafondaanwezigheidssensor PD-FLAT-E 360i/8 ROUND WHITE
- 2298-3766
- |
- EP10428555
4
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Plafondaanwezigheidssensor PD-FLAT-E 360i/8 ROUND WHITE
Plafondaanwezigheidssensor PD-FLAT-E 360i/8 ROUND WHITE
Ordercode YESSS
2298-3766
Product code
EP10428555
EAN code
04015120428555
Product group
Movement sensor/presence detector complete
Brand
ESYLUX
Serie
FLAT
Type
PD-FLAT-E 360i/8 ROUND WHITE
Product description
Design-aanwezigheidsmelder, bereik ca. 8 m in Ø. 1 kanaal, schakelen, met nuldoorgangsschakeling geoptimaliseerd voor LED-lichten. Master/slave (parallelschakeling). Vlakke optiek met design-afdekkingen van kunststof: rond, incl. PD-FLAT-inbouwdoos, wit - variabel uitwisselbaar (als alternatief: glas, vierkant, zwart). inbouw en plafondinbouw). Impulsgeveringang.
Product specifications
Model
Presence detector
Constant light control
No
HVAC-control
No
Forced switch on
Yes
Forced switch off
Yes
Animal zone
No
Creep-under protection
No
Networkable
No
Scan angle
360 °
Optimum mounting height
2.5 m
Staircase light controller
No
Bridging switch
No
Max. reach sideways
4 m
Max. presence range
12.58 m²
Max. reach frontally
3 m
Diameter reach on floor
8 m
Suitable for wireless transmission
No
Remote operation
Yes
With remote control
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
Yes
Teach-function for response value luminosity
No
Suitable for ceiling mounting
Yes
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Connection type
Push-in clamp
Material
Plastic
Material quality
Thermoplastic
Halogen free
No
Surface protection
Untreated
Surface finishing
Matt
Anti-bacterial treatment
No
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP20
Voltage type
AC
Frequency
50 - 50 Hz
Min. switch-on time
60 s
Max. duty cycle
30 min
Switch-off delay
300 s
Switch-on delay
30 s
Detection angle horizontal
180 - 360 °
Swivel range sensor, horizontal
0 - 0 °
Swivel range sensor, vertical
0 - 0 °
Response value luminosity
5 - 2000 lx
Max. switching power
2300 W
Suitable for C-load
Yes
Number of switching zones
1
Max. starting current
78 A
With alarm function
No

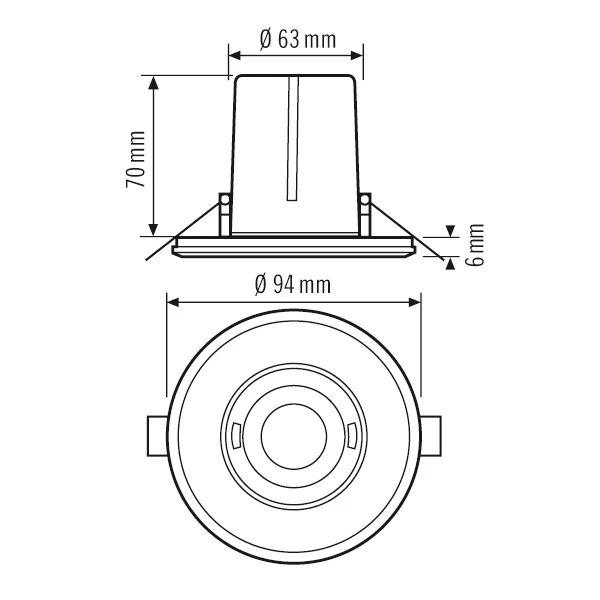

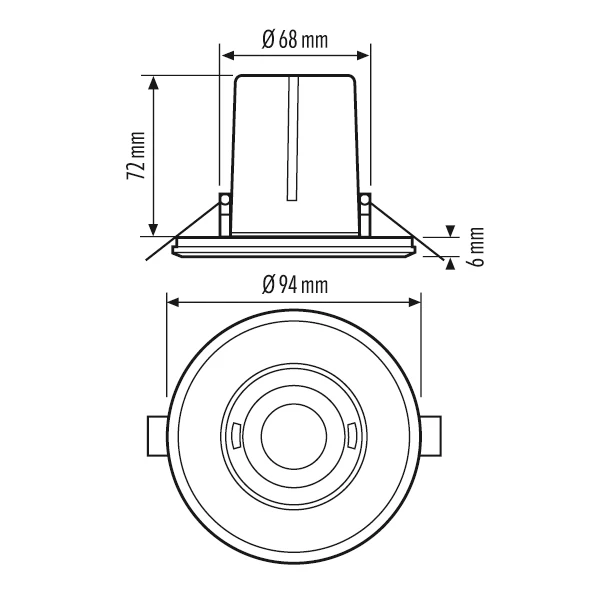

Height
78 mm
Diameter
94 mm
Built-in depth
100 mm
Built-in diameter
68 mm
Min. depth of built-in installation box
100 mm
Max. switching power LED
600 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
230 - 230 V
Suitable for wall mounting
No
Background monitoring
No
With acoustic sensor
No
With connection cable
No
Compatible with Casambi
No
Movement sensor/presence detector technology
Passive infrared
Ambient temperature
-25 - 50 °C
