FIN CALL/RESET RELAIS 1W+1M 12VAC/DC
- 0816-9253
- |
- 13.12.0.012.0000
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

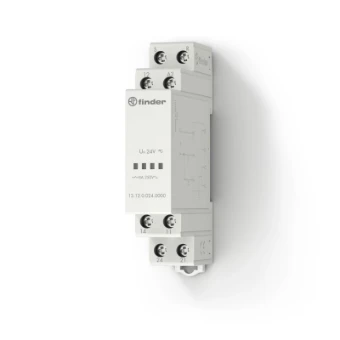

FIN CALL/RESET RELAIS 1W+1M 12VAC/DC
FIN CALL/RESET RELAIS 1W+1M 12VAC/DC
Ordercode YESSS
0816-9253
Product code
13.12.0.012.0000
EAN code
08012823336633
Product group
Latching relay
Brand
Finder
Serie
13
Type
13.12.0.012.0000
Product description
Oproeprelais met resetcommando, 17,5 mm breed, 1 wisselcontact 8 A /250VAC1 en 1 maakcontact 8 A /250VAC1, aansluitspanning 12 V AC/DC
Product specifications
Function
Electronic switch
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth
60.8 mm
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
1
Control voltage 1
9.6 - 13.2 V
Type of control voltage 1
AC/DC
Frequency control voltage 1
50 - 60 Hz
Rated switch current
8 A
Supply voltage
12 - 12 V
Voltage type (supply voltage)
AC/DC
Max. incandescent lamp load
800 W
Max. load fluorescent lamp
400 VA
Max. load fluorescent lamp (Duo circuit)
250 VA
Max. load fluorescent lamp (parallel compensated)
250 VA
Max. switching current (cos phi = 0.6)
9 A
Suitable for manual operation
No
