General information

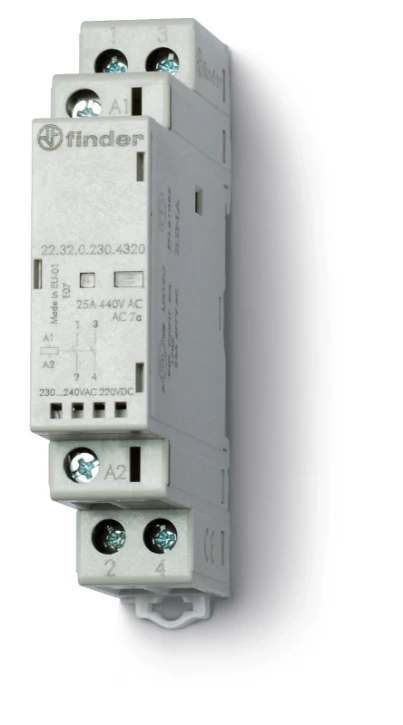

FIN MAGNEETSCHAK 2M 25A 12VUC
FIN MAGNEETSCHAK 2M 25A 12VUC
Ordercode YESSS
2073-4741
Product code
22.32.0.012.4320
EAN code
08012823355726
Product group
Installation contactor for distribution board
Brand
Finder
Serie
22
Type
22.32.0.012.4320
Product description
Magneetschakelaar, 17,5 mm breed, 2 maakcontacten 25A /250VAC1, spoelspanning 12 VAC/DC, contactmateriaal AgSnO2, mechanische standindicatie en LED
Product specifications
Rated operating voltage
250 - 440 V
Rated operation current
25 A
Rated excitation voltage
12 - 12 V
Voltage type (operating voltage)
AC/DC
Voltage type (excitation voltage)
AC/DC
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
0
Max. incandescent lamp load
2000 W
Max. load fluorescent lamp
800 VA
Max. load fluorescent lamp (Duo circuit)
500 VA
Max. load fluorescent lamp (parallel compensated)
200 VA
Slider for hand switch
No
Built-in depth
60.8 mm
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
1
With day/night function
No
Hum-free
Yes
Utilization category according to EN IEC 60947-4-1
AC-7a/AC-7b
