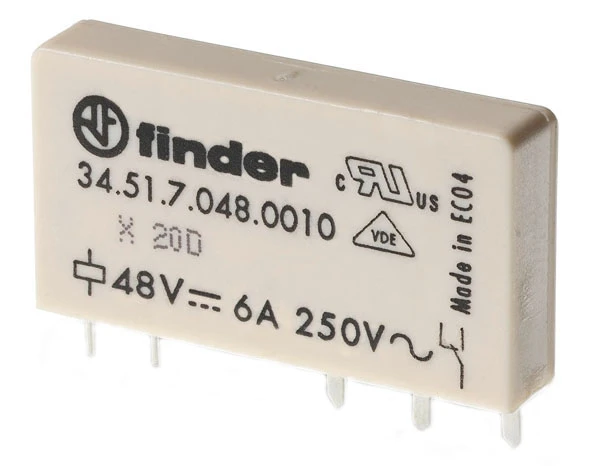

FIN RELAIS 1W 6A 48VDC S.
Add to selection
General information
Ordercode YESSS
0091-5586
Product code
34.51.7.048.0010
EAN code
08012823217093
Product group
Switching relay
Brand
Finder
Serie
34
Type
34.51.7.048.0010
FIN RELAIS 1W 6A 48VDC S.
FIN RELAIS 1W 6A 48VDC S.
STOCK
IN STOCK
0
piece
Product description
Smal insteek-/printrelais, 1 wisselcontact 6 A /250VAC1, spoelspanning 48VDC sensitief, contactmateriaal AgNi
Product specifications
Type of electric connection
PCB connection
With detachable clamps
No
Nominal current
6 A
Rated control supply voltage DC
48 - 48 V
Voltage type for actuating
DC
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
No
With LED indication
No
Width
5 mm
Height
15 mm
Depth
28 mm
Material contact
Silver nickel (AgNi)
Relay technology category according to IEC 61810-7
RT II
Voltage type (operating voltage)
DC
Operating voltage DC
33.6 - 72 V
Max. starting current
10 A
