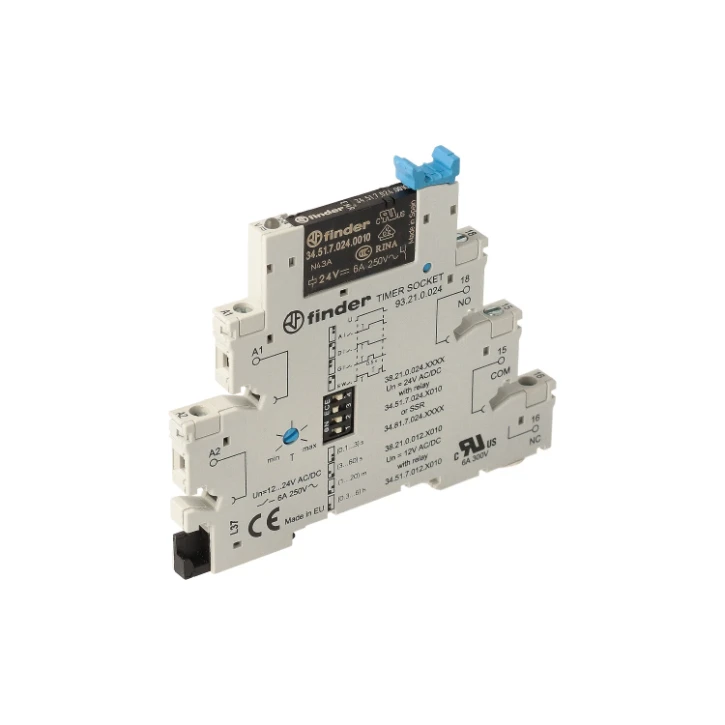

FIN INTERF.RELAIS+TIJDF. 1W 6A 24VUC
- 0416-5774
- |
- 38.21.0.024.0060
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
FIN INTERF.RELAIS+TIJDF. 1W 6A 24VUC
FIN INTERF.RELAIS+TIJDF. 1W 6A 24VUC
Ordercode YESSS
0416-5774
Product code
38.21.0.024.0060
EAN code
08012823329420
Product group
Switching relay
Brand
Finder
Serie
38
Type
38.21.0.024.0060
Product description
Interfacerelais (voet+relais), aansluitvoet met schroefaansluiting, 6,2 mm breed, 1 wisselcontact 6A /250VAC1, spoelspanning 12 VAC/DC, contactmateriaal AgNi, LED-indicatie en EMC-bescherming, tijdfuncties ingebouwd
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Nominal current
6 A
Rated control supply voltage AC 50 Hz
24 - 24 V
Rated control supply voltage AC 60 Hz
24 - 24 V
Rated control supply voltage DC
24 - 24 V
Voltage type for actuating
AC/DC
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
Yes
With LED indication
Yes
Degree of protection (IP)
IP20
Width
6.2 mm
Height
75.6 mm
Depth
87.9 mm
Material contact
Silver nickel (AgNi)
Voltage type (operating voltage)
AC/DC
Operating voltage AC 50 Hz
19.2 - 26.4 V
Operating voltage AC 60 Hz
19.2 - 26.4 V
Operating voltage DC
19.2 - 26.4 V
Max. starting current
10 A
