General information

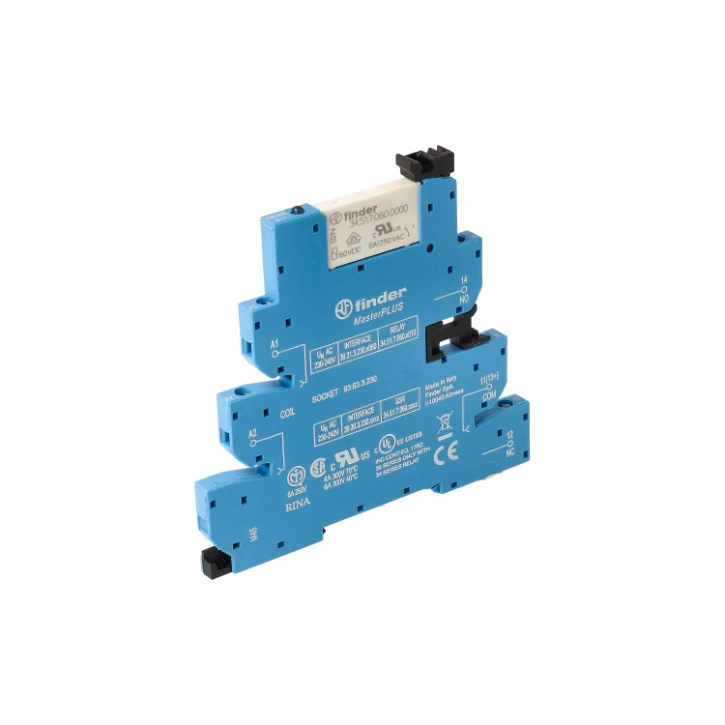

FIN INTERF.RELAIS MasterPLUS 1W 6A 230VAC
FIN INTERF.RELAIS MasterPLUS 1W 6A 230VAC
Ordercode YESSS
1562-3692
Product code
39.31.3.230.0060
EAN code
08012823356938
Product group
Switching relay
Brand
Finder
Serie
39
Type
39.31.3.230.0060
Product description
Interfacerelais (voet+relais), MasterPLUS, schroefaansluiting, 6,2 mm breed, 1 wisselcontact 6A /250VAC1, spoelspanning 230-240 VAC, contactmateriaal AgNi, LED-indicatie en EMC-bescherming, zekeringoptie
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Nominal current
6 A
Rated control supply voltage AC 50 Hz
230 - 240 V
Rated control supply voltage AC 60 Hz
230 - 240 V
Voltage type for actuating
AC
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
Yes
With LED indication
Yes
Degree of protection (IP)
IP20
Width
6.2 mm
Height
90.7 mm
Depth
94.3 mm
Material contact
Silver nickel (AgNi)
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
184 - 264 V
Operating voltage AC 60 Hz
184 - 264 V
Max. starting current
10 A
