Add to selection

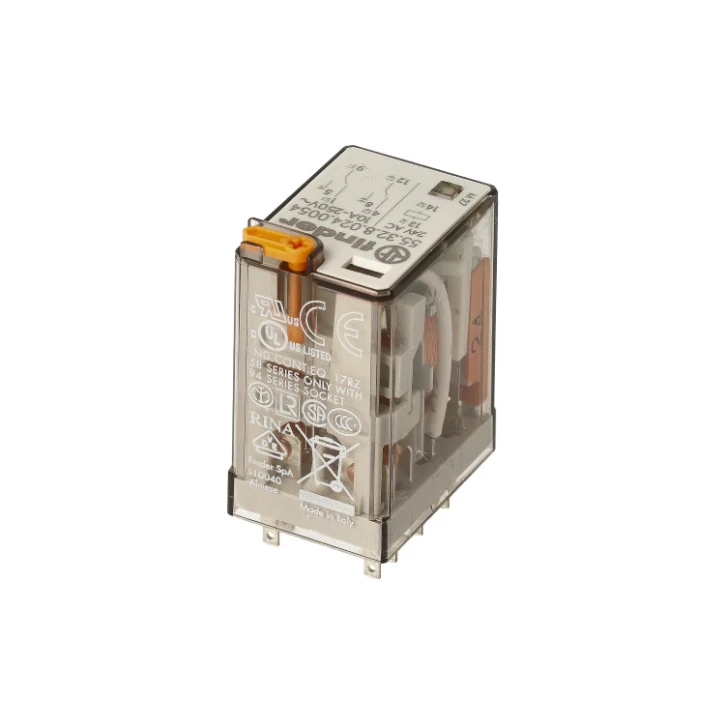

FIN RELAIS 2W 10A 24VAC
- 0091-8028
- |
- 55.32.8.024.0054
9
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
FIN RELAIS 2W 10A 24VAC
FIN RELAIS 2W 10A 24VAC
Ordercode YESSS
0091-8028
Product code
55.32.8.024.0054
EAN code
08012823091761
Product group
Switching relay
Brand
Finder
Serie
55
Type
55.32.8.024.0054
Product description
Miniatuur industrierelais (insteekbaar), 2 wisselcontacten 10 A /250VAC1, spoelspanning 24 V AC, contactmateriaal AgNi, blokkeerbare testknop, LED-indicatie en mechanische standindicatie
Product specifications
Type of electric connection
Plug-in connection
With detachable clamps
No
Nominal current
10 A
Rated control supply voltage AC 50 Hz
24 - 24 V
Rated control supply voltage AC 60 Hz
24 - 24 V
Voltage type for actuating
AC
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
No
With LED indication
Yes
Width
20.7 mm
Height
37.2 mm
Depth
27.7 mm
Material contact
Silver nickel (AgNi)
Relay technology category according to IEC 61810-7
RT I
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
19.2 - 26.4 V
Operating voltage AC 60 Hz
19.2 - 26.4 V
Max. starting current
20 A
