FIN INTERF.RELAIS 2W 10A 230VAC
Add to selection
General information
Ordercode YESSS
3135-6899
Product code
58.32.8.230.0049SMA
EAN code
08012823406633
Product group
Switching relay
Brand
Finder
Serie
58
Type
58.32.8.230.0049SMA
FIN INTERF.RELAIS 2W 10A 230VAC
FIN INTERF.RELAIS 2W 10A 230VAC
STOCK
IN STOCK
0
piece
Product description

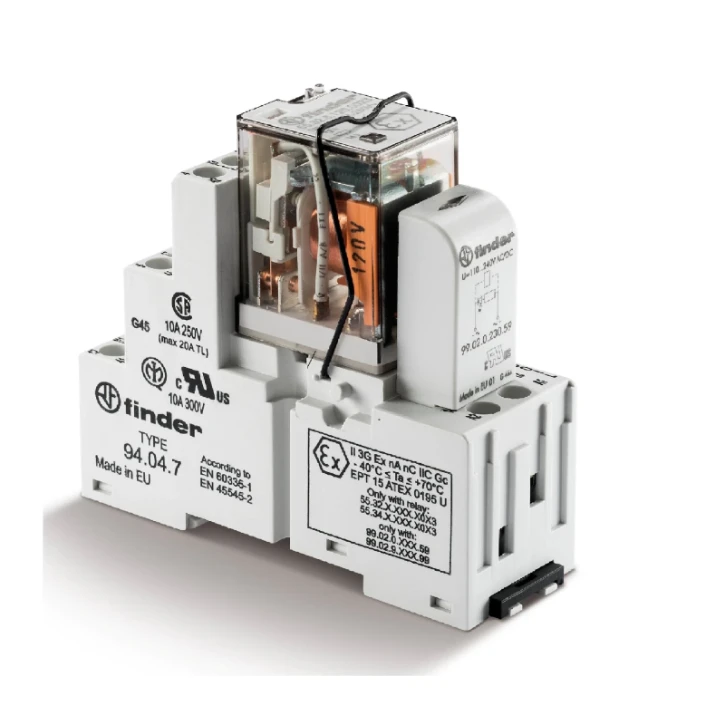

Interfacerelais (voet+relais+moduul+metaalbeugel) schroefaansluiting, 2 wisselcontacten 10A/250VAC1, spoelspanning 230 VAC, contactmateriaal AgNi. IECEx, ATEX (Ex ec nC) en HazLoc Class I Div. 2 conform.
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Nominal current
10 A
Rated control supply voltage AC 50 Hz
230 - 230 V
Rated control supply voltage AC 60 Hz
230 - 230 V
Voltage type for actuating
AC
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Type of switch contact
Single contact
Complete with socket
Yes
With LED indication
Yes
Degree of protection (IP)
IP20
Width
27 mm
Height
78.4 mm
Depth
70 mm
Material of contact surface
Untreated
Material contact
Silver nickel (AgNi)
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
184 - 253 V
Operating voltage AC 60 Hz
184 - 253 V
Max. starting current
20 A
