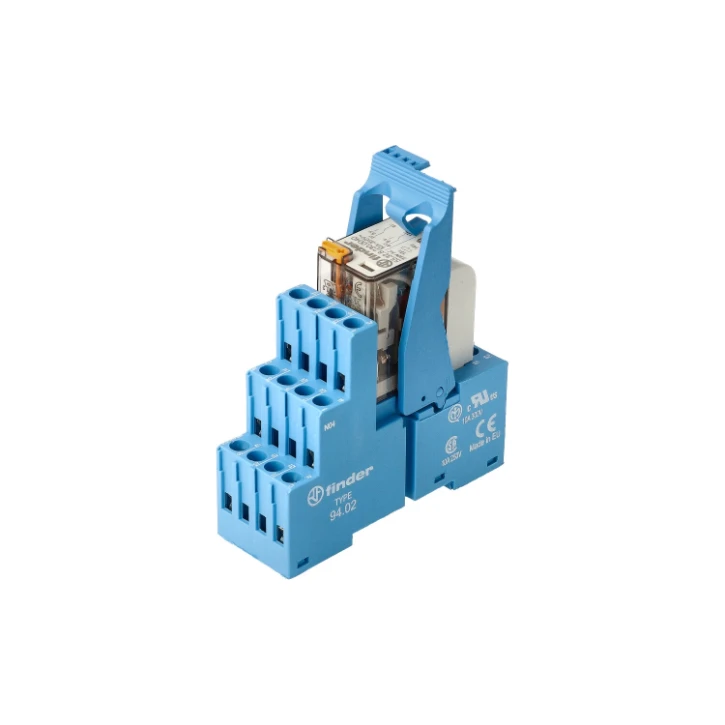

FIN INTERF.RELAIS 2W 10A 230VAC
- 0091-8790
- |
- 58.32.8.230.0060
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
FIN INTERF.RELAIS 2W 10A 230VAC
FIN INTERF.RELAIS 2W 10A 230VAC
Ordercode YESSS
0091-8790
Product code
58.32.8.230.0060
EAN code
08012823290003
Product group
Switching relay
Brand
Finder
Serie
58
Type
58.32.8.230.0060
Product description
Interfacerelais (voet+relais+moduul+clip) schroefaansluiting, 2 wisselcontacten 10A /250VAC1, spoelspanning 230 V AC, contactmateriaal AgNi, LED-indicatie en varistor
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Nominal current
10 A
Rated control supply voltage AC 50 Hz
230 - 230 V
Rated control supply voltage AC 60 Hz
230 - 230 V
Voltage type for actuating
AC
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
Yes
With LED indication
Yes
Degree of protection (IP)
IP20
Width
27 mm
Height
83 mm
Depth
76 mm
Material contact
Silver nickel (AgNi)
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
184 - 253 V
Operating voltage AC 60 Hz
184 - 253 V
Max. starting current
20 A
