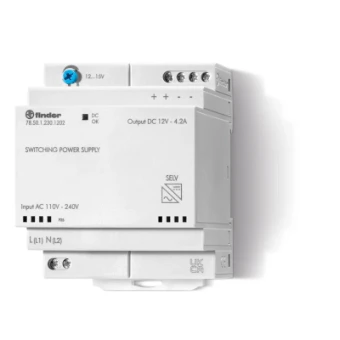

DC-power supply Finder
Add to selection
General information
Ordercode YESSS
3098-5758
Product code
78.50.1.230.1202
EAN code
08012823444918
Product group
DC-power supply
Brand
Finder
Product specifications
Voltage type (supply voltage)
AC/DC
1st secondary output voltage
12 - 15 V
2nd secondary output voltage
12 - 15 V
Max. output current 1
4.6 A
Max. output current 2
4.6 A
Secondary voltage adjustable
Yes
Nominal value output voltage 1
12 V
Nominal value output voltage 2
12 V
Nominal value output current 1
4.2 A
Nominal value output current 2
4.2 A
Short-circuit-proof
Yes
Rated supply voltage AC 50 Hz
110 - 240 V
Rated supply voltage AC 60 Hz
110 - 240 V
Rated supply voltage DC
220 - 220 V
Output voltage stabilized
Yes
Power consumption
86 VA
Power output
55 W
Stabilized
Yes
Type of electric connection
Screw connection
Suitable for rail mounting
Yes
Suitable for distribution board
Yes
Width in number of modular spacings
4
Built-in width
70 mm
Built-in height
56.5 mm
Direct mounting possible
Yes
Width
70 mm
Height
88.8 mm
Depth
56.6 mm
SIL according to IEC 61508
None
Degree of protection (IP)
IP20
Suitable for wall mounting
No
