FIN VOEDING 24VDC 2,5A 60W
Add to selection
General information
Ordercode YESSS
3092-3717
Product code
78.60.1.230.2402
EAN code
08012823444895
Product group
DC-power supply
Brand
Finder
Serie
78
Type
78.60.1.230.2402
FIN VOEDING 24VDC 2,5A 60W
FIN VOEDING 24VDC 2,5A 60W
STOCK
IN STOCK
0
piece
Product description

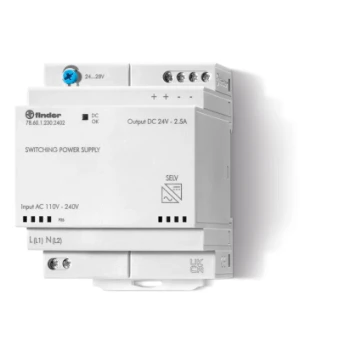

Voeding voor schakelkasten 60W 24VDC, 2,5A voor 35mm DIN rail, geschikt voor SELV-toepassingen (EN 60950), met hiccup-mode, met nuldoorgangsfunctie en instelbare spanning aan de uitgang, levensduur langer dan 500.000 uur
Product specifications
Voltage type (supply voltage)
AC/DC
1st secondary output voltage
24 - 28 V
2nd secondary output voltage
24 - 28 V
Max. output current 1
2.8 A
Max. output current 2
2.8 A
Secondary voltage adjustable
Yes
Nominal value output voltage 1
24 V
Nominal value output voltage 2
28 V
Nominal value output current 1
2.5 A
Nominal value output current 2
2.5 A
Short-circuit-proof
Yes
Rated supply voltage AC 50 Hz
110 - 240 V
Rated supply voltage AC 60 Hz
110 - 240 V
Rated supply voltage DC
220 - 220 V
Output voltage stabilized
Yes
Power consumption
90 VA
Stabilized
Yes
Type of electric connection
Screw connection
Suitable for rail mounting
Yes
Suitable for distribution board
Yes
Width in number of modular spacings
4
Built-in width
70 mm
Built-in height
88.8 mm
Direct mounting possible
Yes
Width
70 mm
Height
88.8 mm
Depth
56.5 mm
SIL according to IEC 61508
None
Degree of protection (IP)
IP20
Suitable for wall mounting
No
