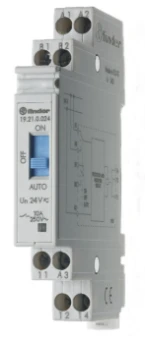

Switching relay Finder
Add to selection
General information
Ordercode YESSS
0091-5088
Product code
19.21.0.024.0000
EAN code
08012823197265
Product group
Switching relay
Brand
Finder
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Nominal current
10 A
Rated control supply voltage AC 50 Hz
24 - 24 V
Rated control supply voltage AC 60 Hz
24 - 24 V
Rated control supply voltage DC
24 - 24 V
Voltage type for actuating
AC/DC
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
No
With LED indication
No
Degree of protection (IP)
IP20
Width
11.2 mm
Height
60.8 mm
Depth
56.5 mm
Material contact
Silver tin oxide (AgSnO2)
Voltage type (operating voltage)
AC/DC
Operating voltage AC 50 Hz
19.2 - 26.4 V
Operating voltage AC 60 Hz
19.2 - 26.4 V
Operating voltage DC
19.2 - 26.4 V
Max. starting current
15 A
