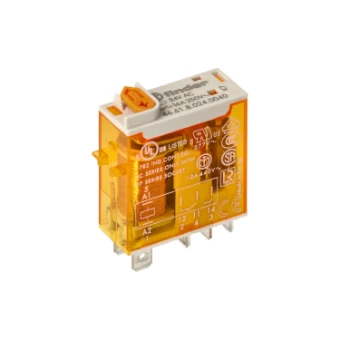

Switching relay Finder
Add to selection
General information
Ordercode YESSS
0091-7173
Product code
46.61.8.024.0040
EAN code
08012823301655
Product group
Switching relay
Brand
Finder
Product specifications
Type of electric connection
Plug-in connection
With detachable clamps
No
Nominal current
16 A
Rated control supply voltage AC 50 Hz
24 - 24 V
Rated control supply voltage AC 60 Hz
24 - 24 V
Voltage type for actuating
AC
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
No
With LED indication
No
Width
12.4 mm
Height
32.8 mm
Depth
29 mm
Material contact
Silver nickel (AgNi)
Relay technology category according to IEC 61810-7
RT II
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
19.2 - 26.4 V
Operating voltage AC 60 Hz
16.2 - 26.4 V
Max. starting current
25 A
