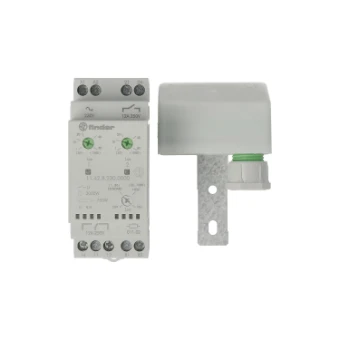

Twilight switch for distribution board Finder
Add to selection
General information
Ordercode YESSS
0816-9241
Product code
11.42.8.230.0000
EAN code
08012823347813
Product group
Twilight switch for distribution board
Brand
Finder
Product specifications
Rated voltage
230 V
Rated frequency
50 - 60 Hz
Max. incandescent lamp load
2000 W
Max. load fluorescent lamp
1000 VA
Max. load fluorescent lamp (Duo circuit)
1000 VA
Max. load fluorescent lamp (parallel compensated)
750 VA
Max. switching current (cos phi = 0.6)
14.5 A
Rated switch current
12 A
Adjustment range brightness value
1 - 1000 lx
With programmable overnight shutoff
No
Push button input
No
Rated voltage light sensor
5 V
Max. conductor length light sensor
50 m
Protection class light sensor
III
Mounting method light sensor
Wall surface mounted
Mounting method
DIN rail
Width in number of modular spacings
35
Built-in depth
60.8 mm
Degree of protection (IP)
IP20
Degree of protection (IP) light sensor
IP68
Max. switching power LED
400 W
Product information
