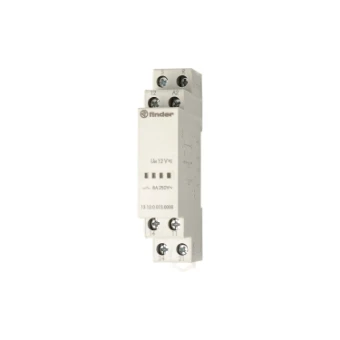

Latching relay Finder
Add to selection
General information
Ordercode YESSS
0816-9253
Product code
13.12.0.012.0000
EAN code
08012823336633
Product group
Latching relay
Brand
Finder
Product specifications
Function
Electronic switch
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth
60.8 mm
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
1
Control voltage 1
9.6 - 13.2 V
Type of control voltage 1
AC/DC
Frequency control voltage 1
50 - 60 Hz
Rated switch current
8 A
Supply voltage
12 - 12 V
Voltage type (supply voltage)
AC/DC
Max. incandescent lamp load
800 W
Max. load fluorescent lamp
400 VA
Max. load fluorescent lamp (Duo circuit)
250 VA
Max. load fluorescent lamp (parallel compensated)
250 VA
Max. switching current (cos phi = 0.6)
9 A
Suitable for manual operation
No
Product information
