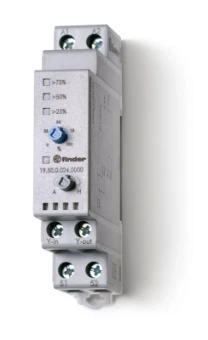

Switching relay Finder
Add to selection
General information
Ordercode YESSS
0816-9289
Product code
19.50.0.024.0000
EAN code
08012823336435
Product group
Switching relay
Brand
Finder
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Nominal current
10 A
Rated control supply voltage DC
24 - 24 V
Voltage type for actuating
DC
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
No
With LED indication
Yes
Degree of protection (IP)
IP20
Width
17.5 mm
Height
60.8 mm
Depth
84 mm
Material contact
Silver tin oxide (AgSnO2)
Voltage type (operating voltage)
AC/DC
Operating voltage AC 50 Hz
19.2 - 26.4 V
Operating voltage AC 60 Hz
19.2 - 26.4 V
Operating voltage DC
19.2 - 26.4 V
Max. starting current
15 A
Product information
