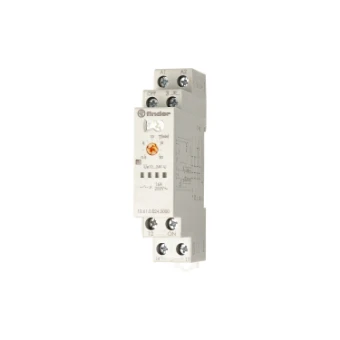

Latching relay Finder
Add to selection
General information
Ordercode YESSS
2221-4974
Product code
13.61.0.024.0000
EAN code
08012823400198
Product group
Latching relay
Brand
Finder
Product specifications
Function
Electronic switch
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth
60.8 mm
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1
10.2 - 26.4 V
Type of control voltage 1
AC/DC
Frequency control voltage 1
50 - 60 Hz
Rated switch current
16 A
Supply voltage
12 - 24 V
Voltage type (supply voltage)
AC/DC
Max. incandescent lamp load
2000 W
Max. load fluorescent lamp
1000 VA
Max. load fluorescent lamp (Duo circuit)
750 VA
Max. load fluorescent lamp (parallel compensated)
750 VA
Max. switching current (cos phi = 0.6)
18 A
Suitable for manual operation
No
