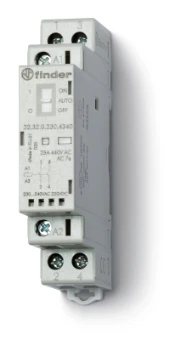

Installation contactor for distribution board Finder
Add to selection
General information
Ordercode YESSS
3086-8810
Product code
22.32.0.120.4340
EAN code
08012823356594
Product group
Installation contactor for distribution board
Brand
Finder
Product specifications
Rated operating voltage
250 - 440 V
Rated operation current
25 A
Rated excitation voltage
120 - 120 V
Voltage type (operating voltage)
AC/DC
Voltage type (excitation voltage)
AC/DC
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
0
Max. incandescent lamp load
2000 W
Max. load fluorescent lamp
800 VA
Max. load fluorescent lamp (Duo circuit)
500 VA
Max. load fluorescent lamp (parallel compensated)
200 VA
Slider for hand switch
No
Built-in depth
60.8 mm
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
1
With day/night function
No
Hum-free
Yes
Utilization category according to EN IEC 60947-4-1
AC-7a/AC-7b
