TRMS industriële multimeter met VDF en Meterlink

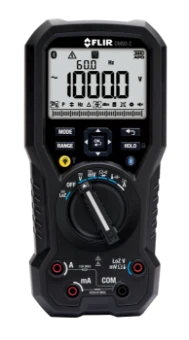

De FLIR DM93-2 is een geavanceerde digitale TRMS multimeter die speciaal ontworpen is voor VFD metingen. Deze robuuste multimeter is zeer geschikt voor intensief industrieel gebruik en te gebruiken in combinatie met Meterlink.

Kenmerken:

• Bereik AC/DC spanning: 1000V
• Bereik AC/DC stroom: 10.000A
• VFD spanning: 1000V
• Weerstand: 40MΩ
• Continuity Threshold: 30Ω
• Frequentie: 100.00kHz
• Capaciteit: 40.00 mF
• Temperatuur bereik: -200 tot 1200 °C (-328 tot 2192 °F)
• Diode test: 2V
• Bereik Bluetooth: 10 m
• Compatibel met MeterLink
• Voorzien van VFD mode, LoZ mode, analoge bargraph, automatische AC/DC instelling, min/max/average recording, auto power off, hold, relative, peak hold, store, recall, display counts: 40.000 en data recording: 20.000 Pts (max. 125 dagen)
• Veiligheidscategorie: CAT IV 600V, CAT III 1000V

• FLIR DM93-2 Di
  Product specifications

  Indication

  Analogue/digital

  Multiple display

  Yes

  Measuring range selection

  Manual/automatic

  Max. voltage measuring range AC

  1000 V

  Lowest resolution, AC voltage

  0.001 mV

  Max. voltage measuring range DC

  1000 V

  Lowest resolution, DC voltage

  0.001 mV

  Max. current measuring range, AC

  10 A

  Lowest resolution, AC current

  1 µA

  Max. current measuring range, DC

  10 A

  Lowest resolution, DC current

  1 µA

  Max. resistance measuring range

  40 M Ohm

  Milliohm measurement with 4 wire technique (Kelvin connection)

  No

  Lowest resolution, resistance

  0.01 Ohm

  Temperature measurement RTD

  No

  Temperature measurement TC

  Yes

  Max. temperature measuring range

  1200 °C

  Lowest resolution temperature

  Other

  Capacitance measurement

  Yes

  Max. capacitance measuring range

  40000 µF

  Lowest resolution, capacitance

  0.00001 µF

  Frequency measurement

  Yes

  Max. frequency measuring range

  4000 kHz

  Lowest resolution, frequency

  0.001 Hz

  Resistance test/diode test

  Yes

  Nominal test voltage 10 V

  No

  Nominal test voltage 50 V

  No

  Nominal test voltage 100 V

  No

  Nominal test voltage 250 V

  No

  Nominal test voltage 500 V

  No

  Nominal test voltage 1000 V

  No

  Cable length measurement

  No

  Cable symmetry testing for two wire connections a-b-E

  No

  Power and energy measurement

  No

  Harmonics analysis/power quality

  No

  With decibel measurement (dB)

  No

  Relative value measurement

  Yes

  Inductance measurement

  No

  With conductivity measurement

  No

  Continuity test

  Yes

  Data hold

  Yes

  Max. value storage

  Yes

  Min. value storage

  Yes

  Peak value memory

  Yes

  True RMS measurement

  Yes

  Duty cycle measurements

  No

  Rotational speed measuring

  No

  Measured value memory

  Yes

  Interface

  No

  Bluetooth interface

  Yes

  IR interface

  No

  Automatic circuit breaker

  No

  Measuring circuit category

  CAT IV

  Max. voltage measuring circuit category

  600 V

  Explosion-tested version

  No

  With display backlight

  Yes

  Temperature measurement

  Yes

  Degree of protection (IP)

  IP54

  Scaling bar graph linear

  No

  Scaling bar graph logarithmic

  No

  Max. voltage measuring range AC/DC

  1000 V

  Lowest resolution, AC/DC voltage

  0.001 mV

  Max. current measuring range, AC/DC

  10 A

  Lowest resolution, AC/DC current

  1 µA

  High voltage test for motor windings

  No

  Current supply

  Battery
