IR camera 640 x 480 pixels, -20°C tot 1500°C

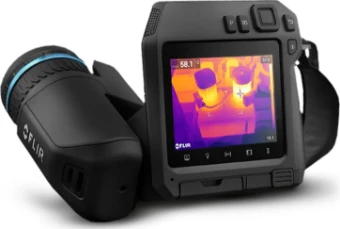

De Flir T560-24 warmtebeeldcamera heeft een 180° draaibare lens om gemakkelijk beelden boven je hoofd, op de grond of op lastig bereikbare plaatsen te maken. De Flir T560-24 wordt standaard geleverd met een 24° lens.

Kenmerken:

• Thermische resolutie: 640 x 480 (307.200 pixels)
• UltraMax (super-resolution): 1.228.800 effectieve pixels
• Temperatuurbereik: -20°C tot 1500°C
• Ruimtelijke resolutie: 0.66 mrad/pixel
• Thermische gevoeligheid: < 40 mK, 24° @ +30°C
• Digital Zoom: 1-8x
• Display: 4", 640 x 480 pixel touchscreen LCD met auto-rotation
• Product specifications
  Display diagonal

  4 inch

  With touch screen

  Yes

  Thermal image

  Yes

  Visual image

  Yes

  Thermal-/visual image (in one image)

  Yes

  Video recording

  Yes

  Frames per second (fps)

  30

  Thermal sensitivity at 30 °C

  0.05 °C

  Temperature measuring range

  -20 - 1500 °C

  Relative measurement accuracy

  2 %

  Wave band

  7.5 - 14 µm

  Field of view (FOV) horizontal

  14 °

  Field of view (FOV) vertical

  10 °

  Instantaneous field of view (IFOV)

  0.38 m rad

  Auto focus

  Yes

  Auto orientation

  Yes

  Focus stacking

  Yes

  Image averaging

  Yes

  Digital zoom

  8

  Increase image size

  Yes

  With memory function

  Yes

  Internal memory

  No

  SD-card slot

  Yes

  MiniSD-card slot

  No

  MicroSD-card slot

  No

  CompactFlash I card slot

  No

  CompactFlash II card slot

  No

  USB connection

  Yes

  Bluetooth interface

  Yes

  Wi-Fi-compatible

  Yes

  Analogue video out

  No

  HDMI-connection

  No

  Ethernet

  No

  Gigabit Ethernet

  No

  FireWire (IEEE1394) connection

  No

  Detector cooled

  No

  Ambient temperature

  -15 - 50 °C

  With laser

  Yes

  With built-in torch

  Yes

  With stand holder

  Yes

  Suitable for exchangeable lenses

  Yes

  With digital alarm

  Yes

  With humidity sensor

  No

  With laser distance measurement

  Yes

  Battery powered

  Yes

  External power supply required

  No

  Input voltage AC 50 Hz

  90 - 260 V

  Input voltage AC 60 Hz

  90 - 260 V

  Input voltage DC

  12 - 12 V

  Max. battery duration

  4 h

  Degree of protection (IP)

  IP54

  Weight

  1.4 kg

  Sensor resolution (horizontal)

  640 px

  Sensor resolution (vertical)

  480 px

  Display resolution (horizontal)

  640 px

  Display resolution (vertical)

  480 px

  With communication interface RS-232

  No

  With communication interface RS-485

  No
  more specifications
