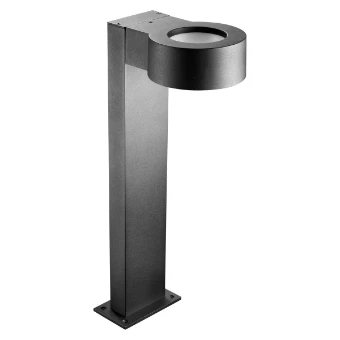

ELIA BL ST AL ON/OFF 4000K 500mm-LED-Bollard 4000K 8W statisch
Add to selection
General information
Ordercode YESSS
3111-0445
Product code
GWF2300LR840
EAN code
08034035077388
Product group
Luminaire bollard
Brand
GEWISS LIGHTING
Serie
ELIA BL
Type
GWF2300LR840
ELIA BL ST AL ON/OFF 4000K 500mm-LED-Bollard 4000K 8W statisch
ELIA BL ST AL ON/OFF 4000K 500mm-LED-Bollard 4000K 8W statisch opal
STOCK
IN STOCK
0
piece
Product description
Gegoten aluminium armatuur voor grondmontage, ideaal voor verlichting van woongebieden en doorgangen: Ontworpen in twee afmetingen (500mm en 700mm) met opalen afscherming van polycarbonaat met bi-emissie (up en down) om een comfortabele sfeer te creëren, kleurtemperaturen 3000K, 4000K en 5700K en CRI≥80. Geschikt voor omgevingstemperaturen van -20°C to + 45°C, IP65 en IK08. ELIA BL is eenvoudig te installeren dankzij het grondverankeringssysteem met 4 borgbouten.
Product specifications
Type of luminaire
Pedestal luminaire
With base plate
Yes
With light sensor
No
With movement sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Black
Material cover
Plastic, opal
Voltage type
AC
Nominal voltage
100 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Light distributor
Other
Degree of protection (IP)
IP65
Impact strength
IK08
Protection class according to IEC 61140
I
Max. system power
8 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.9
Width
140 mm
Height/depth
500 mm
Length
208 mm
Diameter
140 mm
Type of wiring
Ending
Number of poles
3
Conductor cross section
2 mm²
Connection type
Screwed terminal
Housing material quality
Other
Exchangeable control gear
No
Light distribution
Symmetric
Light outlet
Indirect
Luminaire efficacy
85 lm/W
Beam angle
Other
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
92
Max. number of luminaires per miniature circuit breaker C16 (MCB)
153
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
No
Containing product according to 2019/2020/EU
No
Rated luminous flux according to IEC 62722-2- 1
650 - 650 lm
Connectable conductor cross section
0.5 - 2 mm²
Type of power supply
Mains power supply
