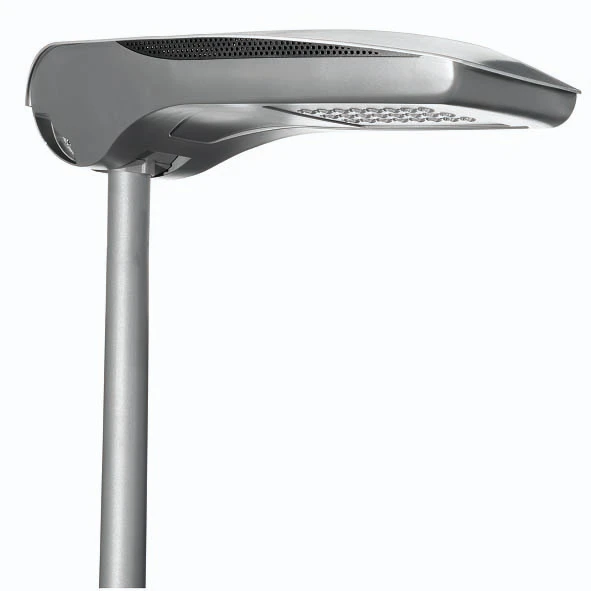

STREET LED BIREG.5M 4000K 550mA STR-LED-Straatverlichting 4000K 129W m

Add to selection
General information
Ordercode YESSS
3138-9297
Product code
GW87534
EAN code
08011564782945
Product group
Luminaire for streets and places
Brand
Gewiss
Serie
ROAD LIGHTING
STREET LED BIREG.5M 4000K 550mA STR-LED-Straatverlichting 4000K 129W m STREET LED BIREG.5M 4000K 550mA STR-LED-Straatverlichting 4000K 129W m
STOCK
IN STOCK
0 piece
Product description

Straatverlichtingsarmatuur met optieken voor straatverlichting en voetpaden, vereenvoudigd onderhoud, met een behuizing, frame en mastbevestiging van gegoten aluminium: aluminium met laag kopergehalte met polyester poedercoating, voor verhoogde corrosieweerstand: Zijventilatie in PA6. Poederpolyester gecoat na voorbehandeling voor verhoogde corrosiebestendigheid. Beveiling voor piekspanningen tot 12kV volgens de IEC EN 61000-4-5 norm (uitgegeven door een derde partij) zonder het gebruik van aanvullende beveiligingsapparatuur. Optisch systeem gemaakt van methacrylaat, bestaande uit verschillende lenzen, die het mogelijk maken om aan de verplichte vereisten voor straatverlichting te voldoen. Geschikt voor omgevingstemperaturen tot 50°C, maar met reductie van de voedingsstroom zoals aangegeven in de handleiding.

Product specifications
Mounting method
Post top/side entry
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
5
Lamp holder
None
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Aluminium
Material cover
Plastic, transparent
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Degree of protection (IP)
IP66
Light distributor
Focal lens
Adjustable optics
No
Suitable for spigot size
42 - 76 mm
Impact strength
IK08
Protection class according to IEC 61140
II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated ambient temperature according to IEC 62722-2-1
-25 - -25 °C
Remote control
None
With radio control
No
Constant light output (CLO)
No
With light regulation program control
No
With connection cable
No
Max. system power
129 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
70-79
Luminaire efficacy
108 lm/W
Power factor
0.9
Width
403 mm
Height/depth
185 mm
Length
726 mm
Type of wiring
Ending
Number of poles
2
Connection type
Screwed terminal
