General information
Behuizing incl. afdekraam, 3-voudig, hoog, opbouw, A.8, lichtwit mat
Behuizing incl. afdekraam, 3-voudig, hoog, opbouw, A.8, lichtwit mat
Ordercode YESSS
3144-4450
Product code
WAD8310WM
EAN code
03250610074909
Product group
Surface mounted box for flush-mounted switching equipment
Brand
Hager
Serie
A.8
Type
Opbouwbehuizing
Product description
Behuizing incl. afdekraam, 3-voudig, hoog, opbouw, A.8, lichtwit mat
Product specifications
Assembly arrangement
Surface mounted box
Suitable for modular domestic switching devices
No
Number of modules (module system)
3
Number of units
3
Mounting direction
Horizontal and vertical
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
With cover frame
Yes
With duct entry
Yes
With cable entry
Yes
With screw gland entry
No
Shock resistant
No
Degree of protection (IP)
IP20
Shape
Rectangular
Cross-trunking mounting
No

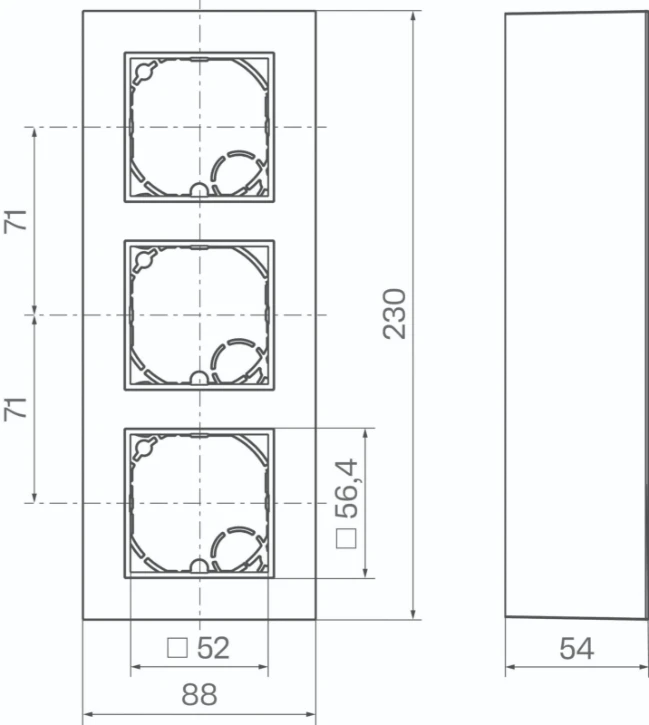

Width
88 mm
Height
230 mm
Depth
54 mm
Suitable for mounting over existing flush-mounted box
Yes
Desktop device
No
With installation tube entry
Yes
Number of inlets
3
Inlet from the rear
Yes
Number of earthing terminals
0
Compliant with BS 4662
No
