Centraalpl voor XLR connector D-serie, A.x/C.x/S.1/B.x/Q.x/K.x titaan
- 3144-4566
- |
- WAF1177TA
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

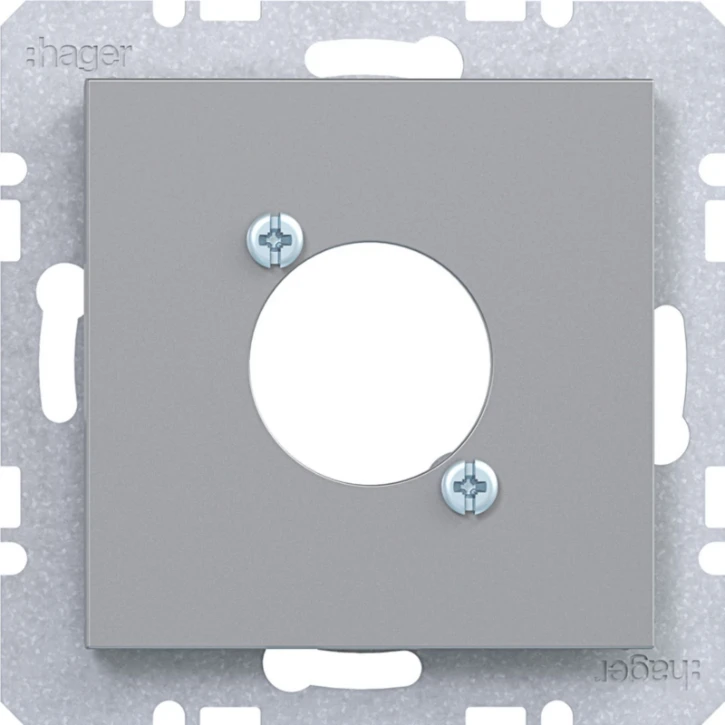

Centraalpl voor XLR connector D-serie, A.x/C.x/S.1/B.x/Q.x/K.x titaan
Centraalpl voor XLR connector D-serie, A.x/C.x/S.1/B.x/Q.x/K.x titaan
Ordercode YESSS
3144-4566
Product code
WAF1177TA
EAN code
03250610074763
Product group
Insert/cover for communication technology
Brand
Hager
Serie
A.x/C.x/S.1/B.x/Q.x/K.x
Type
Afdekking data
Product description
Centraalpl voor XLR connector D-serie, A.x/C.x/S.1/B.x/Q.x/K.x titaan
Product specifications
Assembly arrangement
Central cover plate for intermediate ring
Utilization
XLR
Support ring
Yes
With dust cover
No
With hinged lid
No
Outlet direction
Straight
Imprintable label
Without indication field
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Titanium
RAL-number (similar)
9006
Transparent
No
Type of fastening
Mounting with screw
Number of modules (module system)
1
With buses/couplings
No
Suitable for number of connectors
1
With strain relief
No
Shielded buses
No
Shielded housing
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
70.9 mm
Device height
70.9 mm
Device depth
10 mm
Min. depth of built-in installation box
0 mm
Anti-bacterial treatment
No
With lighting
No
Impact strength
IK05
Isolated connections
No
