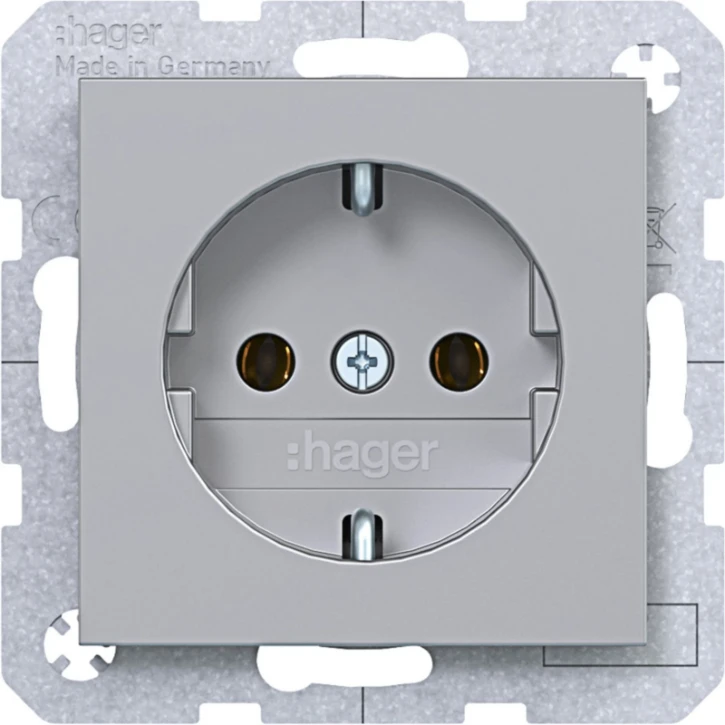

SCHUKO-wandcontactdoos, steekkl., A.x/C.x, titaan
- 3144-4846
- |
- WAS1100TA
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
SCHUKO-wandcontactdoos, steekkl., A.x/C.x, titaan
SCHUKO-wandcontactdoos, steekkl., A.x/C.x, titaan
Ordercode YESSS
3144-4846
Product code
WAS1100TA
EAN code
03250610069462
Product group
Socket outlet
Brand
Hager
Serie
A.x/C.x
Type
Wandcontactdoos
Product description
SCHUKO-wandcontactdoos, steekkl., A.x/C.x, titaan
Product specifications
Model
Socket outlet with protective contact CEE 7/3 (type F)
Number of active contacts (round)
2
Number of active contacts (flat)
0
With signal lamp
No
Number of modules (module system)
0
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Push-in clamp
With hinged lid
No
With enhanced contact protection
No
Label space/information surface
No
Colour
Titanium
RAL-number (similar)
9006
Transparent
No
Lockable
Yes
Eject-mechanism
No
Insulated mounting
Yes
With function lighting
No
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
None
Mounting method
Flush-mounted
Type of fastening
Mounting with claw and screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Anti-bacterial treatment
No
With on/off switch
No
With loop through function
Yes
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50 - 60 Hz
Rated fault current
16000 mA
Suitable for degree of protection (IP)
IP21
Impact strength
IK05
Device width
70.9 mm
Device height
70.9 mm
Device depth
41.3 mm
Min. depth of built-in installation box
40 mm
Metallic colour
Yes
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
For heavy conditions according to VDE
No
Number of ports USB-A
0
Number of ports USB-C
0
Max. current rating of USB power supply
0 A
Colour of switch operator
Other
With Wi-Fi signal repeater
No
With built-in bluetooth speaker
No
Compliant with UK Building Regulations Part M
No
Concurrently switching neutral conductor
No
Protective contact
Earthing clips
Number of active contacts (square)
0
Number of loop throughs
1
