Serieschakelaar, 230/24 V
- 3144-5126
- |
- WDE35003
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

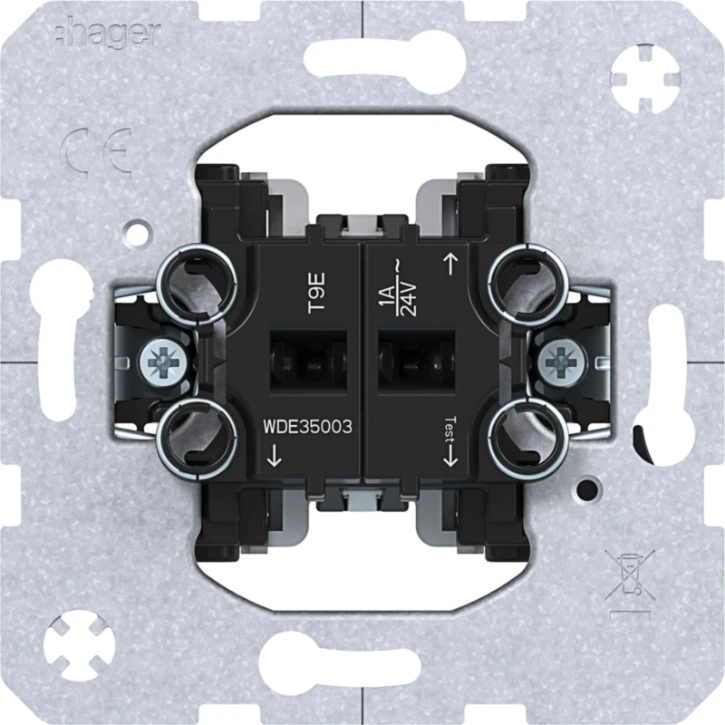

Serieschakelaar, 230/24 V
Serieschakelaar, 230/24 V
Ordercode YESSS
3144-5126
Product code
WDE35003
EAN code
03250610074633
Product group
Installation switch
Brand
Hager
Serie
Basiselementen
Type
Schakelaar
Product description
Serieschakelaar, 230/24 V
Product specifications
Wiring system
Series switch
Operating method
Rocker/button
Assembly arrangement
Basic element
Push button switch
No
Number of rockers
2
Mounting method
Flush-mounted
Type of fastening
Mounting with claw and screw
With mounting plate
No
Material
Other
Material quality
Other
Halogen free
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Black
Label space/information surface
No
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
Other
Suitable for degree of protection (IP)
IP20
Nominal voltage
24 V
Rated current
1 A
Switching current for fluorescent lamps
10 AX
Monitoring contact
No
Connection type
Push-in clamp
Washing machine switch
No

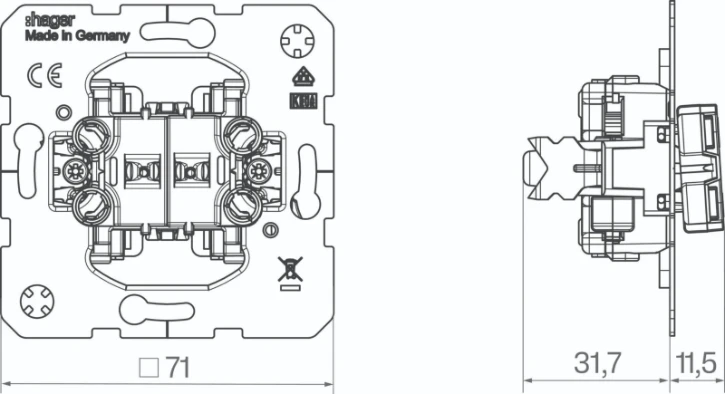

Device width
71 mm
Device height
71 mm
Device depth
43 mm
Built-in depth
31 mm
Min. depth of built-in installation box
40 mm
Anti-bacterial treatment
No
Impact strength
IK05
Heating switch
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Colour of switch operator
Other
Compliant with UK Building Regulations Part M
No
Imprint/indication
None
