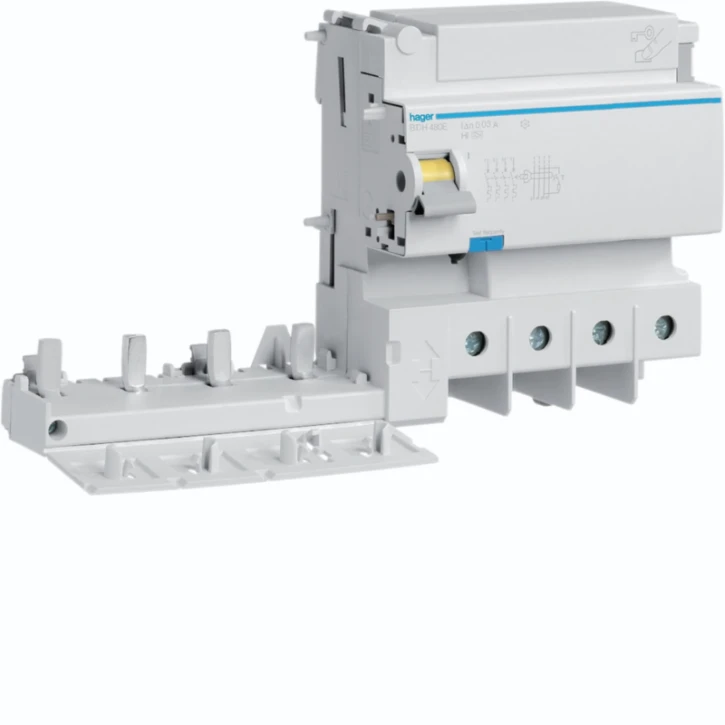

Aardlekelement 4-polig 125 A 30mA A high immunity
- 0012-7069
- |
- BDH480E
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Aardlekelement 4-polig 125 A 30mA A high immunity
Aardlekelement 4-polig 125 A 30mA A high immunity
Ordercode YESSS
0012-7069
Product code
BDH480E
EAN code
03250611340058
Product group
Residual current circuit breaker (RCCB) module
Brand
Hager
Type
BDH480E
Product description
Aardlekelement 4-polig 125 A 30mA A high immunity
Product specifications
Nominal voltage
240 - 415 V
Nominal current
125 A
Rated fault current adjustable
No
Rated fault current
0.03 - 0.03 A
Max. delay time
0 ms
Delay adjustable
No
Number of poles
4
Leakage current type
A
Surge current capacity
3 kA
Frequency
50 Hz
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
6 kV
Connectable conductor cross section solid-core
10 - 70 mm²
Connectable conductor cross section multi-wired
10 - 50 mm²
Anti-nuisance tripping version
Yes
Degree of protection (IP)
IP20
Pollution degree
3
Ambient temperature during operating
-25 - 60 °C
Power loss
15 W
